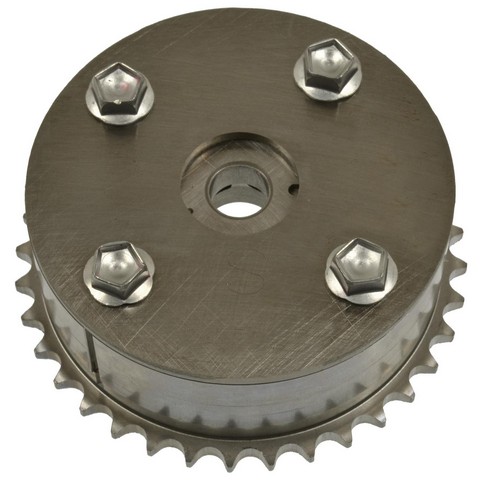

Standard Ignition VVT700 right VVT sprocket for the 2008-2009 Toyota Camry 4-cylinder 2.4L and other vehicles helps set valve timing inside the variable valve timing system. Some catalogs call it an engine variable valve timing VVT sprocket.
- 36 teeth with tooth profiles shaped for quiet operation
- Designed to lower leakage and lash, which supports noise-free operation
- Precision-machined for accurate variable valve timing
- Every sprocket goes through 100% end-of-line testing
- Metal gear with a keyway notch and two timing marks
Quick facts
- Part: Standard Ignition VVT700 VVT sprocket
- Also called: engine variable valve timing vvt sprocket
- Fits: the 2008-2009 Toyota Camry 4-cylinder 2.4L and other vehicles
- Position: Right bank
- Material: Metal
- Condition: New
Rough idle, valve train noise or poor drivability can mean a VVT sprocket is worn. A worn timing chain, a faulty VVT solenoid or low oil pressure can be behind those signs too, so find the cause before buying a new sprocket. This listing is one sprocket for the right bank.
Fits
The 2004-2007 Toyota RAV4 4-cylinder 2.4L and the 2008-2015 Scion xB 4-cylinder 2.4L take this direct-fit OE replacement too, along with other vehicles. Look up your own car's years and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Right bank
- Quantity per application: 1
- Number of teeth: 36
- Outside diameter: 93.218 mm (3.67 in)
- Inside diameter: 33.782 mm (1.33 in)
- Thickness: 4.064 mm (0.16 in)
- Lug hole diameter: 11.176 mm (0.44 in), 1 mounting hole
- Number of timing marks: 2
Build and materials
- Material: Metal
- Keyway notch: Yes
- Number of rows: 1
- Adjustable: No
- Condition: New
- Country of origin: United States
In the box
One VVT sprocket. Mounting hardware is not included, so plan on new bolts rather than reusing the old ones.
Interchange: 35-1497
VV5205 · VVTB10265 · ECP1902 · 130500H010 · 130500H030 · 1305028020 · 1305028021
This part cross-references / interchanges with the following part numbers:
VV5205, VVTB10265, ECP1902, 35-1497, VVT700, 130500H010, 130500H030, 1305028020, 1305028021
Frequently Asked Questions
Will the Standard Ignition VVT700 fit a 2004-2007 Toyota RAV4 with the 2.4L engine?
Yes. Standard Ignition VVT700 is a right-bank VVT sprocket for the 2004-2007 Toyota RAV4 4-cylinder 2.4L. The 2008-2015 Scion xB 4-cylinder 2.4L takes it too.
Does the VVT700 sprocket come with mounting bolts?
No. Mounting hardware is not included with this VVT sprocket, so plan on new bolts. The listing is one sprocket.
How many teeth does the VVT700 sprocket have, and how big is it?
Standard Ignition VVT700 has 36 teeth, a 93.218 mm outside diameter and a 33.782 mm inside diameter. It is 4.064 mm thick.
What can a worn VVT sprocket do to the way the engine runs?
A worn sprocket can go along with rough idle, valve train noise or weaker drivability. A shop can test the variable valve timing system to confirm the cause.
Does the Standard Ignition VVT700 sprocket get tested at the end of the line?
Yes. Every VVT700 sprocket goes through 100% end-of-line testing to meet or exceed OE performance.
