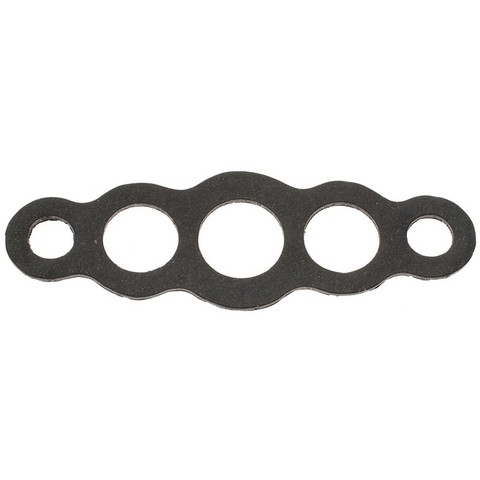

Stop exhaust gas from leaking at the EGR valve mounting joint with the Standard Ignition Exhaust Gas Recirculation (EGR) Valve Gasket VG67. It installs as a direct-fit replacement for the listed Mazda applications, including the 1976-1977 Mazda 808 (L4-1.6L), 1977-1978 Mazda GLC (L4-1.3L), 1979-1980 Mazda GLC (L4-1.4L), 1979-1984 Mazda B2000 (L4-2.0L), 1980-1982 Mazda 626 (L4-2.0L), and 1981-1983 Mazda GLC (L4-1.5L).
The EGR valve routes a metered amount of exhaust gas back into the intake, and this gasket seals the joint where the valve bolts to its mounting surface. A failed gasket can let exhaust or vacuum leak past that joint; if a leaking EGR valve gasket is the cause of a rough idle, hissing, or an exhaust smell at the valve, this replaces it. Diagnose the source of the leak before replacing.
- Metal construction: a metal EGR valve mounting gasket.
- 2 bolt holes, 3 ports: matches the valve's mounting pattern and gas passages.
- Sized 3.65 in (92.71 mm) long by 1.18 in (29.97 mm) wide, 1/16 in (1.78 mm) thick.
- Emission-component quality: built by a global emission-parts manufacturer that maintains quality control through production.
A pipe gasket is not included. Country of origin: Japan.
Interchange: EVG68 · 2-25216 · 225216 · 802820305 · 839720305A · Manufacturer part number VG67
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
What does the Standard Ignition VG67 gasket do?
It seals the joint where the EGR valve bolts to its mounting surface, keeping exhaust gas within the intended passage as the valve recirculates it back into the intake.
Which vehicles does the VG67 fit?
It's a direct-fit replacement for the 1976-1977 Mazda 808, 1977-1983 Mazda GLC, 1979-1984 Mazda B2000, and 1980-1982 Mazda 626. See the Buyer's Guide tab for the engine-level details.
What is this gasket made of and what size is it?
It's a metal gasket about 3.65 in (92.71 mm) long and 1.18 in (29.97 mm) wide, 1/16 in (1.78 mm) thick, with 2 bolt holes and 3 ports.
Does it include a pipe gasket?
No. This listing is the EGR valve mounting gasket only (Gasket Quantity: 1); a pipe gasket is not included.
What are signs this gasket may need replacing?
Signs may include an exhaust or hissing leak at the EGR valve, an exhaust smell, or a rough idle. Confirm the gasket is the source before replacing, since these can have other causes.
