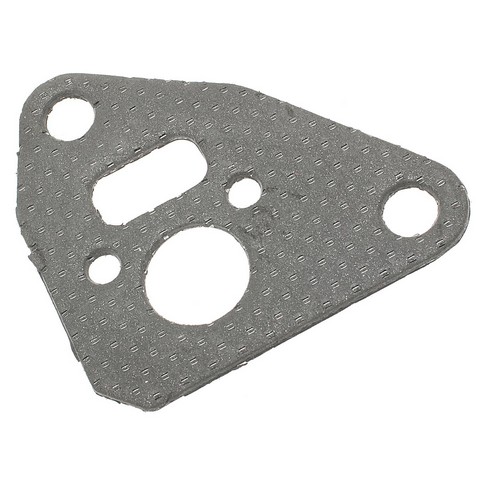

Standard VG7 EGR valve gasket for the 1975 Chevrolet Impala V8 6.6L, the 1975-1983 Impala V8 5.7L, the 1977-1980 Impala V8 5.0L, the 1982-1985 Impala V8 5.0L, the 1985 Impala V8 5.7L and other vehicles seals the EGR valve against its mounting surface.
- Metal gasket body, 1/16 in (1.78 mm) thick
- Four bolt holes and two ports
- One gasket per package
Quick facts
- Part: Standard VG7 EGR valve gasket
- Fits: the 1975 Chevrolet Impala V8 6.6L, the 1975-1983 Impala V8 5.7L, the 1977-1980 Impala V8 5.0L, the 1982-1985 Impala V8 5.0L, the 1985 Impala V8 5.7L and other vehicles
- Material: Metal
- Condition: New
A leaking EGR valve gasket can show up as soot or an exhaust smell around the valve, a ticking sound or an emissions warning light. A cracked EGR valve, a clogged EGR passage or a loose vacuum hose can also sit behind a warning light, so work out which one it is before you buy a gasket.
Fits
This gasket is listed for a wide range of Chevrolet, Buick, GMC, Dodge and Pontiac models, including the 1978 Chevrolet Malibu V8 5.0L, the 1978-1979 Malibu V8 5.7L, the 1980-1983 Malibu V8 5.0L and the 1981 Malibu V8 5.7L, and the 1975-1981 Chevrolet Camaro V8 5.7L and the 1976-1987 Camaro V8 5.0L. The quantity is one gasket per vehicle. If your car is not named here, look up its year and engine on the Buyer's Guide tab.
Specifications
Fit and size
- Quantity per vehicle: 1
- Length: 3.07 in (77.978 mm)
- Width: 2.22 in (56.388 mm)
- Thickness: 1/16 in (1.78 mm)
- Bolt holes: 4
- Ports: 2
Build and materials
- Material: Metal
- Condition: New
- Country of origin: United States
In the box
One EGR valve gasket. The pipe gasket is not included.
Interchange: 2-2522
EVG11 · 10140594 · 12554530 · 14031369 · 343752 · 374752 · 458616
This part cross-references / interchanges with the following part numbers:
EVG11, 2-2522, 10140594, 12554530, 14031369, 343752, 374752, 458616
