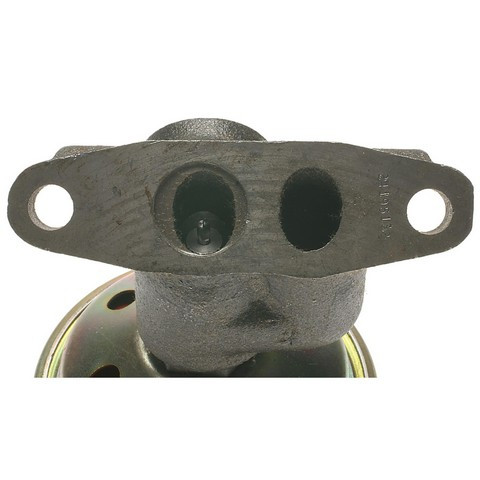

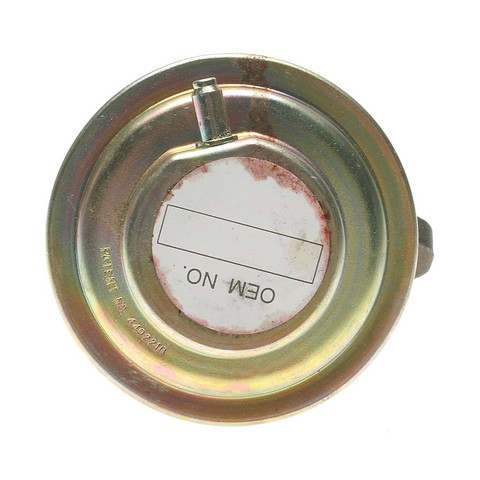

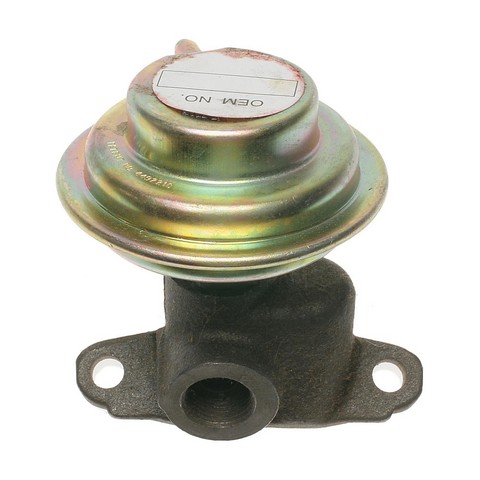

Standard Ignition EGV760 EGR valve for the 1974-1975 Ford Pinto 4-cylinder 2.3L and other vehicles feeds exhaust gas back into the intake under vacuum control. It is designed to reduce NOx emissions on Ford and Mercury vehicles.
- Lowers the combustion temperature, which helps improve fuel economy
- Built to integrate correctly with complex emissions systems
- Vacuum tested for a tight seal and a smooth idle after installation
- Vacuum actuation with one hose connector
Quick facts
- Part: Standard Ignition EGV760 EGR valve
- Fits: 1974-1975 Ford Pinto 4-cylinder 2.3L and other vehicles
A stuck or clogged EGR valve can show up as a rough idle, hesitation or engine ping, but other faults give the same signs. Before you replace the valve, rule out a vacuum leak or a damaged vacuum hose, since this valve runs on vacuum. The engine takes one valve, and this listing is a single valve.
Fits
It fits the 1974-1975 Ford Pinto 4-cylinder 2.3L, the 1975 Mercury Bobcat 4-cylinder 2.3L and the 1974 Ford Mustang II 4-cylinder 2.3L.
Specifications
Fit and size
- Quantity per vehicle: 1
- Number of bolt holes: 2
- Hose connector quantity: 1
- Electrical connector: none
Build and materials
- Actuation style: vacuum
- Operation type: mechanical
- EGR valve type: manufactured valve
- Gasket or seal: included
- Country of origin: Mexico
In the box
One EGR valve with a gasket or seal. Mounting hardware is not included, so plan on new bolts, since the old ones may not be reusable.
Interchange: 2-26029
EC810 · EGRB10539 · D42E9D475C1C · D42E9D475C1D · D42E9D475C2C · D42E9D475C2D · D4FZ9D475C · D52E9D475E1A · D52E9D475E1B · D52E9D475E2A · D52E9D475E2B · D5FZ9D475E · 12323833
This part cross-references / interchanges with the following part numbers:
EC810, EGRB10539, 2-26029, D42E9D475C1C, D42E9D475C1D, D42E9D475C2C, D42E9D475C2D, D4FZ9D475C, D52E9D475E1A, D52E9D475E1B, D52E9D475E2A, D52E9D475E2B, D5FZ9D475E, 12323833
Frequently Asked Questions
Is this the Bobcat EGR valve for the 1975 Mercury Bobcat 4-cylinder 2.3L?
Yes. Standard Ignition EGV760 fits the 1975 Mercury Bobcat 4-cylinder 2.3L, as well as the 1974-1975 Ford Pinto 4-cylinder 2.3L.
Does the Standard Ignition EGR valve come with a gasket and bolts?
Standard Ignition EGV760 includes a gasket or seal. Mounting hardware is not included, so plan on new bolts.
Is the EGV760 operated by vacuum or by an electrical signal?
Vacuum. The EGV760 EGR valve has vacuum actuation with one hose connector and no electrical connector.
How can I tell if this EGR valve is sticking or clogged?
A rough idle, hesitation or engine ping can be signs, though other faults cause the same ones. A shop can test the valve and its vacuum supply.
Does the EGV760 replace number D5FZ9D475E?
Yes. D5FZ9D475E is one of the interchange numbers listed for Standard Ignition EGV760.
