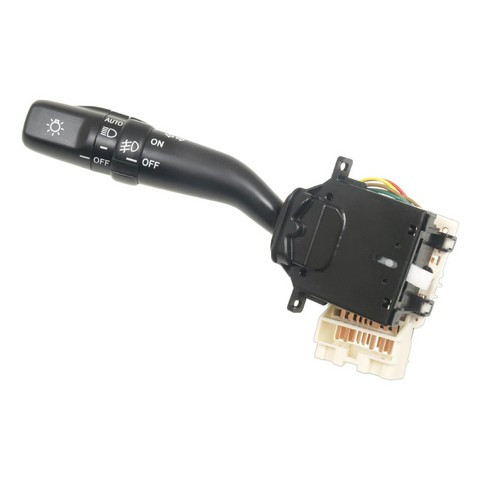

Standard Ignition CBS-1245 headlight switch for the 2001-2003 Toyota Sienna and other vehicles controls the headlights and turn signals from a column-mounted lever. Designed specifically for Toyota vehicles, this new multi-function switch bolts on at the column.
- Copper alloy conductors for electrical conductivity with low resistive losses
- Latching high beam operator and momentary high beam flasher
- Fog light, running light and main light operators on one lever
- Turn signal control with indicator markings
- Tested for both mechanical and electrical switching performance
Quick facts
- Part: Standard Ignition CBS-1245 headlight switch
- Fits: 2001-2003 Toyota Sienna and other vehicles
- Condition: New
Lights or turn signals that work only some of the time, or a lever that feels loose, can mean the switch is worn. Before you replace it, rule out a burned-out bulb, a blown fuse and a damaged connector, since each can cause similar symptoms.
Fits
It fits the 2001-2003 Toyota Sienna, the 1998-1999 Toyota Avalon and the 2004-2006 Toyota Solara, and each of these cars takes one switch.
Specifications
Fit and size
- Quantity per vehicle: 1
- Terminals: 16 male blade terminals

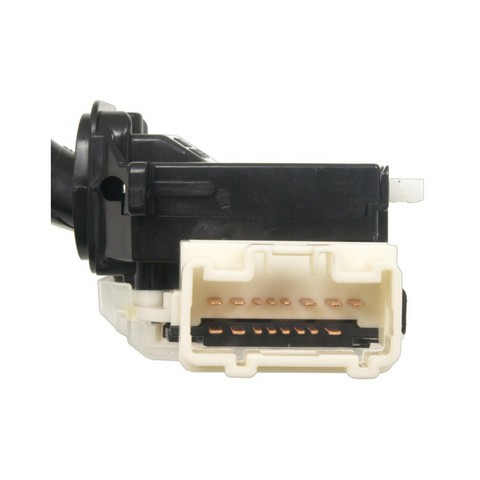

- Connector: 1 rectangular female connector, 1 cavity
- Voltage: 12 V
- Attachment method: bolt on
Build and materials
- Condition: New
- Conductors: copper alloy
- Operators included: fog light, running light, main light, latching high beam, momentary high beam flasher
- Turn signal control and indicator markings: included
- Country of origin: United States
Interchange: S14439 · SW2799 · DL6651 · 8414007030
This part cross-references / interchanges with the following part numbers:
S14439, SW2799, DL6651, CBS-1245, 8414007030
Frequently Asked Questions
Does the Standard Ignition CBS-1245 headlight switch fit the 2001-2003 Toyota Sienna, 1998-1999 Toyota Avalon and 2004-2006 Toyota Solara?
Yes. Standard Ignition CBS-1245 fits each of these cars, and each takes one switch.
How many terminals does the CBS-1245 column switch have?
Standard Ignition CBS-1245 has 16 male blade terminals and one rectangular female connector. Its listed voltage is 12 V.
Does this headlight switch include a fog light control and a high beam flasher?
Yes. This switch has a fog light operator, a latching high beam operator and a momentary high beam flasher, plus turn signal control.
Does this headlight switch have cruise control buttons?
No. This switch has no cruise control set, resume, cancel or on/off operators.
Can I use CBS-1245 in place of an 8414007030 switch?
Yes. 8414007030 is listed as an interchange number this switch replaces, and the Interchange line gives the other numbers.
