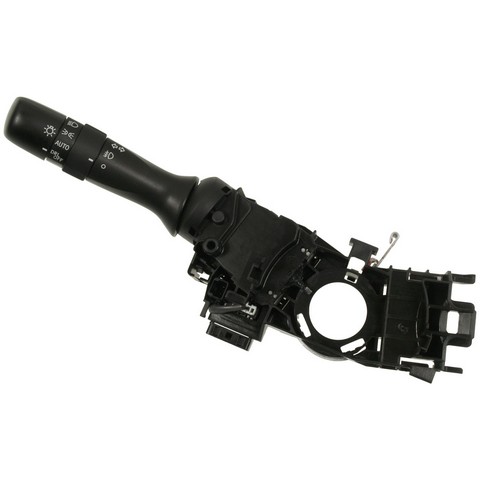

Standard Ignition CBS-1808 headlight switch for the 2009-2010 Toyota Venza controls the headlights, fog lights and turn signals from a column-mounted lever. It is a multi-function column switch made specifically for Toyota vehicles.
- Copper alloy conductors with low resistive losses for electrical conductivity
- Momentary high beam flasher and latching high beam operator

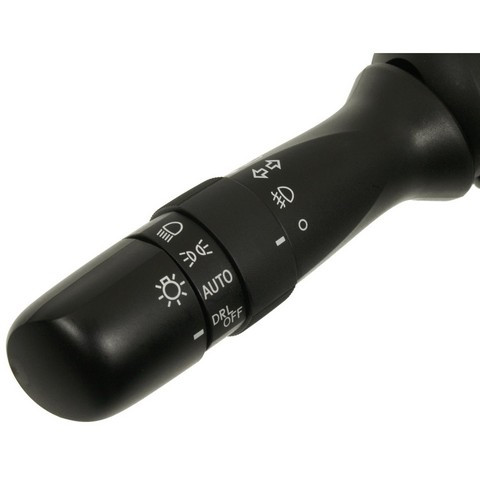

- Main light and running light operators with indicator markings
- Handle made from materials chosen for a solid feel and durability
- Mechanical and electrical switching performance is tested
Quick facts
- Part: Standard Ignition CBS-1808 headlight switch
- Fits: 2009-2010 Toyota Venza
- Condition: New
A lever that feels loose, lights or turn signals that respond only some of the time, or a high beam flasher that does nothing can mean the switch is worn. A burned-out bulb, a blown fuse or a corroded connector can be behind these signs too, so track down the cause before you buy a new switch.
Fits
The 2009-2010 Toyota Venza takes one of these switches, and this one is a direct-fit replacement.
Specifications
Fit and size
- Quantity per vehicle: 1

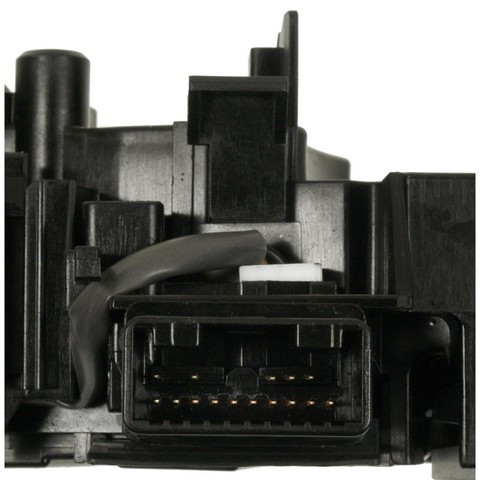

- Connectors: 2, rectangular, female
- Terminals: 17, pin type, male
- Attachment method: snap fit
- Voltage: 12 V
Build and materials
- Type: combination switch
- Controls: main lights, running lights, fog lights, turn signals, momentary high beam flasher, latching high beam
- Indicator markings: included
- Condition: New
- Country of origin: United States
In the box
One headlight switch.
Interchange: S16008 · SW9799 · DL7208 · 841400T080
This part cross-references / interchanges with the following part numbers:
S16008, SW9799, DL7208, CBS-1808, 841400T080
Frequently Asked Questions
Is the Standard Ignition CBS-1808 headlight switch right for a 2009-2010 Toyota Venza?
Yes. Standard Ignition CBS-1808 is listed for the 2009-2010 Toyota Venza, which takes one switch.
Does this headlight switch work the fog lights and high beam flasher?
Yes. Standard Ignition CBS-1808 includes a fog light operator, a momentary high beam flasher and a latching high beam operator, along with turn signal control and indicator markings.
Does this headlight switch include wiper speed, wiper delay or washer controls?
No. Standard Ignition CBS-1808 lists no wiper speed, wiper delay or washer spray functions, and it has no cruise control functions.
How many terminals does Standard Ignition CBS-1808 have?
Standard Ignition CBS-1808 has 17 male pin terminals and two rectangular female connectors. It attaches with a snap fit and is a 12 V switch.
How can I tell if the lever on this headlight switch is wearing out?
Turn signals, high beams or fog lights that respond only sometimes, or a lever that feels loose, can mean the switch is worn. A shop can test the switch itself.
