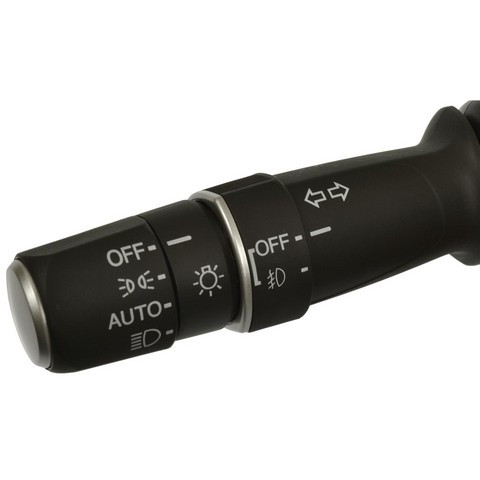

Standard Ignition CBS2416 fog light switch for the 2013-2018 Acura ILX and other vehicles controls the fog lights from a column-mounted lever. This multi-function column switch is a lever-style unit, and its handle uses materials chosen to match OE design for a solid feel.
- Fog light, running light, main light, latching high beam and momentary high beam flasher operators
- Copper alloy conductors for low resistive losses
- Tested for mechanical and electrical switching performance
- Indicator markings on the switch
Quick facts
- Part: Standard Ignition CBS2416 fog light switch
- Fits: 2013-2018 Acura ILX and other vehicles
- Condition: New
Lights that do not respond to the lever, a fog light that will not switch on, or a high beam flasher that stops working can mean the switch is worn. A bulb, fuse, relay or the wiring at the connector can be behind those signs too, so find the cause before buying a switch. Each car takes one, mounted on the steering column.
Fits
Designed specifically for Acura vehicles, it fits the 2013-2018 Acura ILX and the 2013-2018 Acura RDX.
Specifications
Fit and size
- Quantity per vehicle: 1
- Pieces: 1 switch
- Connector: 1 rectangular, female
- Terminal quantity: 12
- Attachment method: clip
Build and materials
- Type: combination switch, column-mounted lever
- Terminal type: male pin
- Conductors: copper alloy
- Condition: New
- Country of origin: China
In the box
One fog light switch.
Frequently Asked Questions
Does the Standard Ignition CBS2416 fog light switch fit the 2013-2018 Acura RDX?
Yes. Standard Ignition CBS2416 fits the 2013-2018 Acura RDX, and it also fits the 2013-2018 Acura ILX.
Is anything besides the switch itself included with this column-mounted fog light switch?
No. The listing is one fog light switch and nothing else.
How many terminals does the CBS2416 fog light switch have?
Standard Ignition CBS2416 has 12 male pin terminals in one rectangular female connector, and it attaches with a clip.
Does this fog light switch also work the high beam flasher?
Yes. It includes fog light, running light, main light, latching high beam and momentary high beam flasher operators. It has no turn signal control and no windshield wiper speed or delay settings.
Is the CBS2416 switch tested for electrical performance?
Yes. Testing covers both mechanical and electrical switching performance, consistent with OE specifications.
