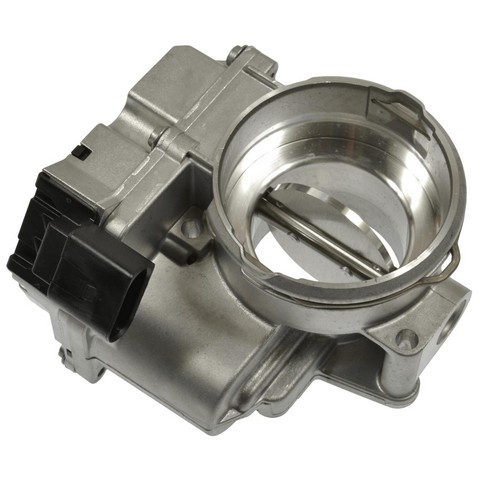

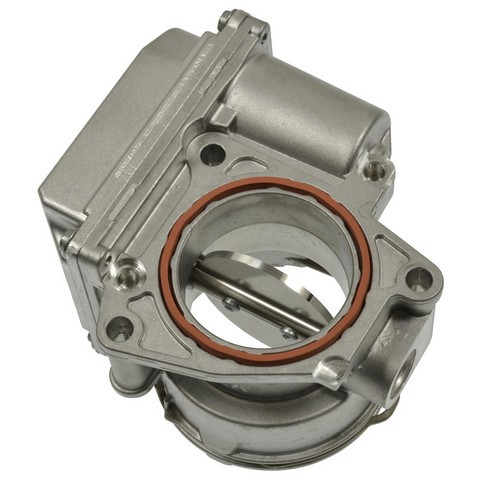

Standard Ignition S20113 fuel injection throttle body for the 2012-2015 Volkswagen Passat V6 3.6L and other vehicles controls how much air enters the engine. It includes the throttle position sensor and the idle air control motor, and it is specifically designed and tested for import vehicles.
- Gear train components designed for durability in harsh operating conditions
- Temperature-resistant silicone seal included
- Validated with 200+ hours of vibration testing, 1000+ hours of extreme heat and cold operational testing, and on-vehicle testing
- Assembled and calibrated to precise output voltages for a smooth relearning process
- Sealed ball bearings limit airflow leakage and reduce mass air-flow error readings
Quick facts
- Part: Standard Ignition S20113 fuel injection throttle body
- Fits: 2012-2015 Volkswagen Passat V6 3.6L and other vehicles
- Condition: New
A worn or failing throttle body can show up as a rough or unstable idle, hesitation or slow throttle response. A vacuum leak is another common source of a rough idle, so these signs alone do not prove the throttle body is the problem.
Fits
It also fits the 2008-2010 Volkswagen Jetta 4-cylinder 1.9L and the 2009-2012 Volkswagen Passat CC V6 3.6L.
Specifications
Fit and size
- Quantity per vehicle: 1
- Connector: 1 female connector
- Terminals: 4 male blade terminals
Build and materials
- Condition: New
- Throttle position sensor: included
- Idle air control motor: included
- Adjustable: No
- Country of origin: Germany
In the box
One throttle body with its seal. This listing holds one, and the vehicle takes one. Mounting hardware, fuel injectors and a throttle body spacer are not included, so plan on new mounting bolts.
Installation notes
- A relearn is required after installation.
Interchange: TB1099D · ETB725 · 03G128063 · 03G128063C · 03G128063J
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
S20113, TB1099D, ETB725, 03G128063, 03G128063C, 03G128063J
Frequently Asked Questions
Will the S20113 throttle body work on a 2008-2010 Volkswagen Jetta 4-cylinder 1.9L?
Yes. Standard Ignition S20113 is listed for the 2008-2010 Volkswagen Jetta 4-cylinder 1.9L, and that engine takes one throttle body.
Does the S20113 come with the throttle position sensor and idle air control motor?
Yes. This throttle body includes the throttle position sensor, the idle air control motor and a seal. Mounting hardware, fuel injectors and a spacer are not included.
How many terminals does the S20113 throttle body connector have?
The Standard Ignition S20113 has one female connector with four male blade terminals.
Do I need a relearn after installing this throttle body?
Yes, a relearn is required after installation. This throttle body is assembled and calibrated to match OE output voltages for a smooth relearning process.
Does this throttle body use sealed ball bearings?
Yes. The sealed ball bearings limit airflow leakage and reduce mass air-flow error readings.
