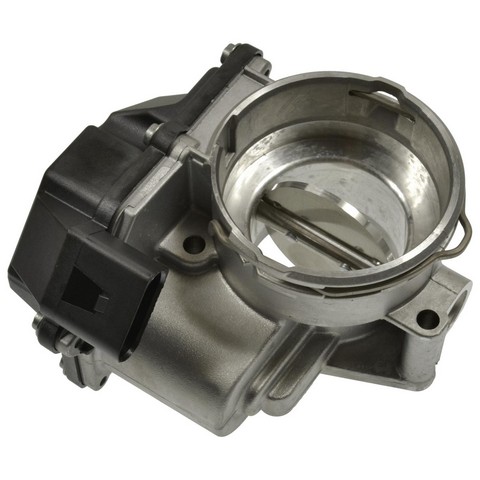

Standard Ignition S20114 fuel injection throttle body for the 2005-2006 Volkswagen Jetta 4-cylinder 1.9L regulates the air that flows into the engine. It is designed and tested specifically for import vehicles.
- Gear train components designed for durability under harsh operating conditions
- Temperature-resistant silicone seal included
- Sealed ball bearings limit airflow leakage and reduce mass air-flow reading errors
- Validated with 200+ hours of vibration testing and 1000+ hours of extreme heat and cold operational testing
- Throttle position sensor included
Quick facts
- Part: Standard Ignition S20114 fuel injection throttle body
- Fits: 2005-2006 Volkswagen Jetta 4-cylinder 1.9L
- Condition: New
A worn or failing throttle body can show up as a rough or unstable idle, hesitation when you press the pedal, or a check engine light, though other faults produce similar symptoms. Before you replace it, look the area over with the engine off and cool: check the air intake connection for cracks or loose clamps and the throttle bore for heavy deposits.
Fits
This fuel injection throttle body is a direct-fit replacement for the 2005-2006 Volkswagen Jetta 4-cylinder 1.9L (engine code L4-1.9L).
Specifications
Fit and size
- Quantity per vehicle: 1
- Connector: 1 female connector
- Terminals: 5 male blade terminals
Build and materials
- Type: electronic throttle body
- Throttle position sensor: included
- Seal: silicone seal included
- Adjustable: No
- Condition: New
- Country of origin: Germany
In the box
One fuel injection throttle body with its seal and throttle position sensor. This listing is one throttle body, and the 2005-2006 Volkswagen Jetta 4-cylinder 1.9L takes one. Mounting hardware, fuel injectors, a throttle body spacer and an idle air control motor are not included, so plan on new bolts rather than reusing the old ones.
Installation notes
- A relearn is required after installation.
- Each unit is assembled and calibrated to match OE output voltages precisely, which makes the relearn smoother.
Interchange: TB1084D · ETB726 · 03G128063A · 03G128063G · 03G128063M · 03G128063Q
This part cross-references / interchanges with the following part numbers:
S20114, TB1084D, ETB726, 03G128063A, 03G128063G, 03G128063M, 03G128063Q
Frequently Asked Questions
Is the Standard Ignition S20114 throttle body right for the 2005-2006 Volkswagen Jetta 4-cylinder 1.9L?
Yes. Standard Ignition S20114 is a direct-fit replacement for the 2005-2006 Volkswagen Jetta 4-cylinder 1.9L (L4-1.9L), and that car takes one.
Does the S20114 throttle body come with a seal and a throttle position sensor?
Yes. Standard Ignition S20114 includes a seal and the throttle position sensor. Mounting hardware, fuel injectors, a spacer and an idle air control motor are not included.
Does this throttle body have a 5-terminal connector?
Yes. It has one female connector with five male blade terminals.
Does this throttle body need a relearn after installation?
Yes. A relearn is required after installation, and the output voltages are set to match OE so the relearn goes smoothly.
What testing was this throttle body put through?
It was validated with 200+ hours of vibration testing and 1000+ hours of extreme heat and cold operational testing, plus on-vehicle testing.
