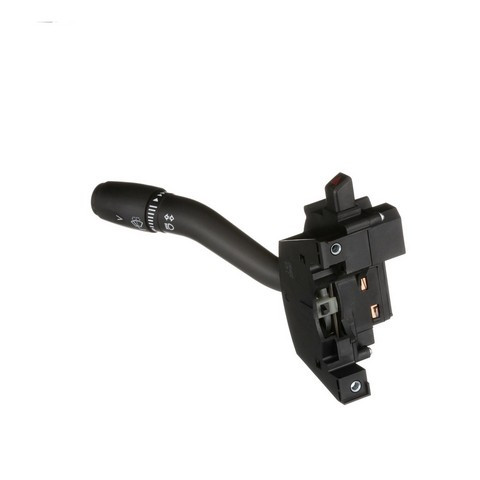

Standard Ignition DS-936 windshield wiper switch for the 2006-2019 Ford F-53 Motorhome Chassis and other vehicles is a column-mounted lever switch for the wipers, headlights and turn signals. This multi-function column switch is designed specifically for Ford vehicles, and its testing covers both mechanical and electrical switching performance consistent with OE specifications.
- Three wiper speeds and seven delay settings, with windshield washer control
- Turn signal control with a latching high beam and a momentary high beam flasher
- Copper alloy conductors for low resistive losses
- Handle materials chosen for a solid feel and durability
- Indicator markings on the switch
Quick facts
- Part: Standard Ignition DS-936 windshield wiper switch
- Fits: 2006-2019 Ford F-53 Motorhome Chassis and other vehicles
- Condition: New
Wipers that skip a speed or delay setting, turn signals that stop flashing, or a high beam that will not latch can point to a worn switch. Before you replace it, rule out the fuse, the wiper motor and the bulbs, since each of those can produce a similar symptom. If the switch is the cause, this one replaces it.
Fits
The 2006-2019 Ford F-53 Motorhome Chassis, the 2003-2004 Ford E-450 Super Duty and the 2003-2004 Ford E-150 are among the Ford vehicles it fits, and each needs one. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Quantity per vehicle: 1
- Attachment method: bolt on
- Connectors: 2, rectangular, female, 2 cavities
- Terminals: 16, male blade
- Voltage: 12 V
Build and materials
- Type: combination switch
- Conductors: copper alloy
- Wiper speed settings: 3; delay settings: 7
- Condition: New
- Country of origin: Taiwan
Interchange: DS170 · SW3407 · DS180 · F7UZ13K359BA · SW5170 · YC2Z13K359AA · YC2Z13K359BA · DS180SB · TSS24 · DS936T
This part cross-references / interchanges with the following part numbers:
DS170, SW3407, DS180, F7UZ13K359BA, SW5170, YC2Z13K359AA, YC2Z13K359BA, DS180SB, TSS24, DS936T
Frequently Asked Questions
Will the DS-936 fit a 2003-2004 Ford E-450 Super Duty?
Yes. Standard Ignition DS-936 fits the 2003-2004 Ford E-450 Super Duty, and each vehicle needs one switch.
How many wiper speeds and delay settings does this windshield wiper switch have?
It has three wiper speeds and seven delay settings, plus windshield washer control. Rear window wiper and rear washer functions are not included.
What connectors does the DS-936 have?
Standard Ignition DS-936 has two rectangular female connectors with 16 male blade terminals, and it is a 12 V switch.
Does this Standard Ignition switch have cruise control or fog light controls?
No. This windshield wiper switch has no cruise control or fog light operators; it covers the wipers, washer, turn signals and high beam.
Can the DS-936 replace a switch numbered DS180?
Yes. DS180 is one of the numbers this switch replaces, along with DS170 and SW3407.
