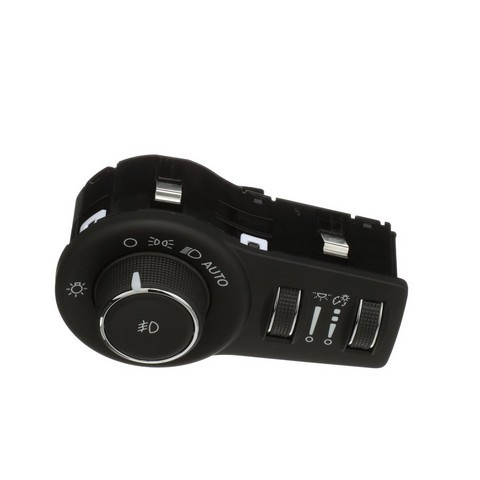

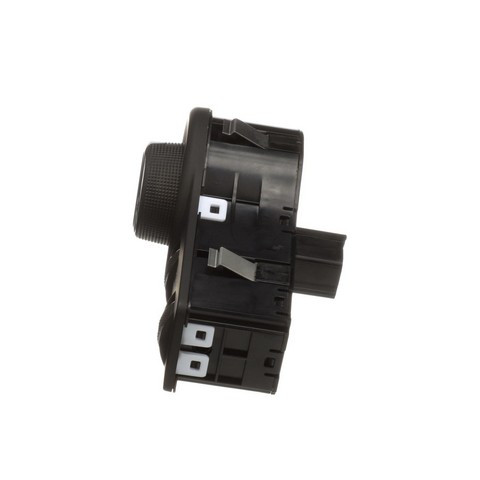

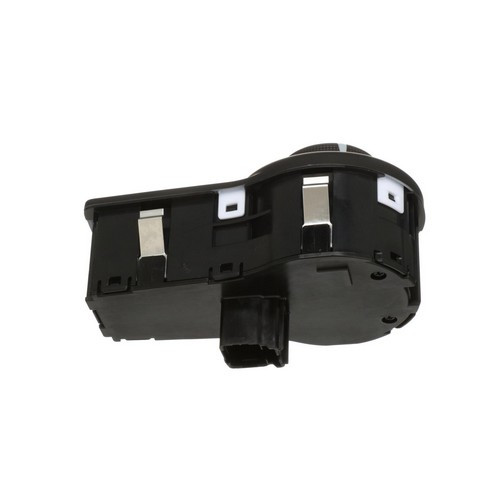

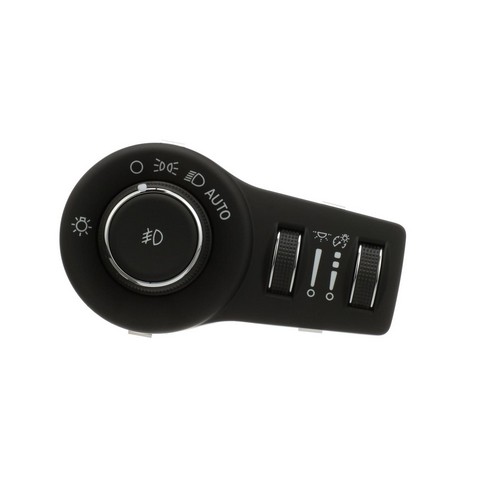

Standard Ignition HLS1771 headlight dimmer switch for the 2017-2020 Jeep Compass and other vehicles controls the headlights through a dial and button. It is made to replace a faulty headlight switch.
- Copper alloy conductors for low resistive losses and good electrical conductivity
- Every unit is tested for both mechanical and electrical switching performance
- Rectangular plug-in connector with 10 male pin terminals
- Dial and button activation with indicator markings
Quick facts
- Part: Standard Ignition HLS1771 headlight dimmer switch
- Fits: the 2017-2020 Jeep Compass and other vehicles
- Condition: New
Headlights that flicker or stay off, or a dial or button that stops responding, can mean this switch is worn, though a burned-out bulb or a blown fuse can be behind them too. Find the real cause before you replace the switch.
Fits
As a direct-fit OE replacement, it is a switch for the 2017-2020 Jeep Compass, the 2016-2022 Fiat 500X and the 2015-2021 Jeep Renegade. This listing is one switch, and the 2017-2020 Jeep Compass takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Voltage: 12 V
- Terminals: 10, male pin
- Connector: 1, rectangular, plug-in, female
Build and materials
- Activation: dial and button
- Attachment: direct, snap fit
- Color: black and chrome
- Indicator markings: included, labeled
- Condition: New
- Country of origin: Mexico
In the box
One headlight dimmer switch. Wiring and mounting hardware are not included, and old hardware may not be reusable.
Installation notes
- Attaches directly with a snap fit and plugs in through its connector.
- The direct-fit design is made for ease of installation.
Interchange: S10638 · 5XN68LXHAA · 5XN68LXHAB · HL7796
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
S10638, 5XN68LXHAA, 5XN68LXHAB, HL7796
Frequently Asked Questions
Does the Standard Ignition HLS1771 fit the 2016-2022 Fiat 500X?
Yes. Standard Ignition HLS1771 is a direct-fit headlight dimmer switch for the 2016-2022 Fiat 500X and also fits the 2015-2021 Jeep Renegade.
Does this Standard Ignition switch come with wiring?
No. Standard Ignition HLS1771 is sold without wiring and without mounting hardware. The switch itself has indicator markings.
How many pin terminals does this headlight dimmer switch have?
It has 10 male pin terminals in one rectangular plug-in connector, and its listed voltage is 12 V.
What can a failing headlight dimmer switch look like?
Headlights that flicker or stay off, or a dial or button that no longer responds, can mean the switch is worn. A shop can test the circuit if you are unsure.
Does this switch replace number 5XN68LXHAA?
Yes. 5XN68LXHAA is one of the numbers this Standard Ignition HLS1771 replaces, along with 5XN68LXHAB, S10638 and HL7796.
