Standard Ignition RU-901 blower motor resistor for the 2017-2020 Toyota 86 and other vehicles helps set the speeds of the heater and A/C blower motor. This HVAC blower motor resistor is made for Scion and Toyota applications.
- Copper alloy conductors for minimal resistive losses
- Copper electrical connectors for more precise resistance values and longer part life
- Developed to work with the vehicle's HVAC system
- Helps restore variable speed control of the heater and A/C blower motor
- Extensively tested for correct performance in all conditions and for durability
Quick facts

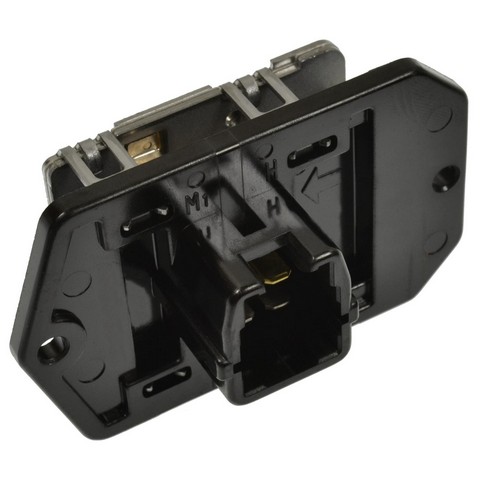

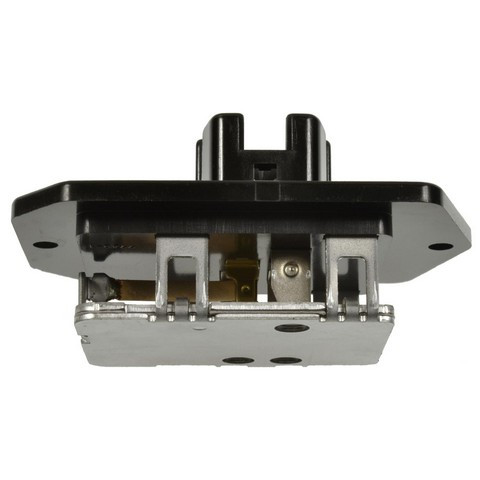

- Part: Standard Ignition RU-901 blower motor resistor
- Also called: HVAC blower motor resistor
- Fits: 2017-2020 Toyota 86 and other vehicles
- Condition: New
A blower that runs on only some speeds, or not at all, can mean the resistor has failed. These signs alone do not prove the resistor is the problem, because a weak blower motor is another common cause.
Fits
This resistor fits the 2017-2020 Toyota 86 and the 2013-2016 Scion FR-S, and only one resistor goes in the car.
Specifications
Fit and size
- Quantity per vehicle: 1
- Number of speeds: 3-5 speed
- Terminals: 4, male blade
- Connector: rectangular, female, 1 cavity
Build and materials
- Attachment method: screw
- Condition: New
- Country of origin: Taiwan
In the box
One blower motor resistor. The wiring harness, mounting bracket and hardware are not included, so plan on new hardware, as the old pieces may not be reusable.
Interchange: RU1590 · JA1991 · BR800 · SU003A0016
This part cross-references / interchanges with the following part numbers:
RU1590, JA1991, BR800, SU003A0016, RU-901
Frequently Asked Questions
Does the Standard Ignition RU-901 blower motor resistor fit a 2017-2020 Toyota 86?
Yes. The Standard Ignition RU-901 fits the 2017-2020 Toyota 86 and the 2013-2016 Scion FR-S, and each car takes one resistor.
Does the RU-901 come with a wiring harness or mounting bracket?
No. The Standard Ignition RU-901 is one blower motor resistor; the wiring harness, mounting bracket and hardware are not included.
How many speeds does this blower motor resistor handle?

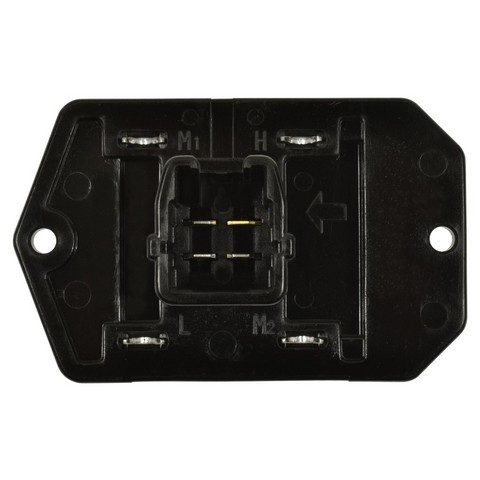

It is listed for 3-5 speed operation. It has four male blade terminals and one rectangular female connector with a single cavity, and it attaches with a screw.
Could a heater fan that works on only some speeds be a bad blower motor resistor?
Yes, it can be. If the resistor has failed, the blower may run on only some speeds or not at all, and a shop can test the circuit.
Does the Standard Ignition RU-901 replace RU1590?
Yes. RU1590 is one of the numbers the Standard Ignition RU-901 replaces, along with JA1991, BR800 and SU003A0016.
