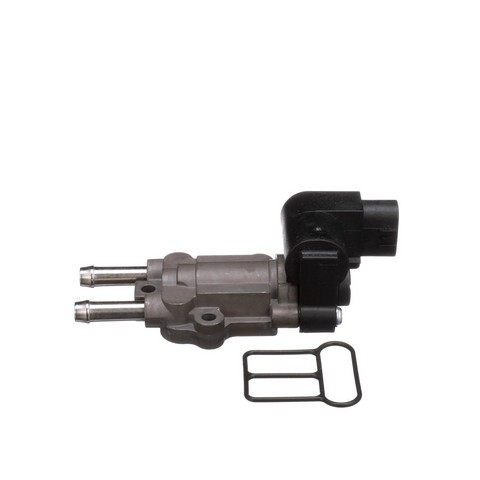

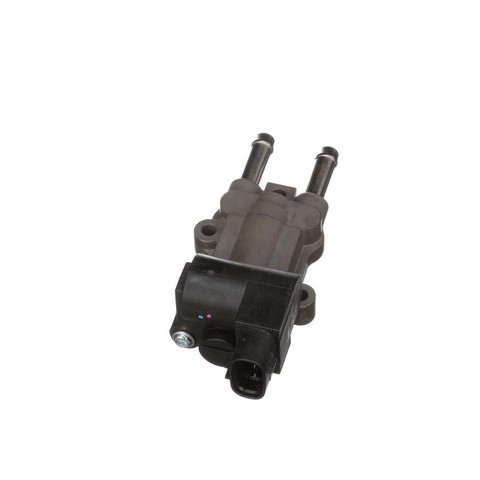

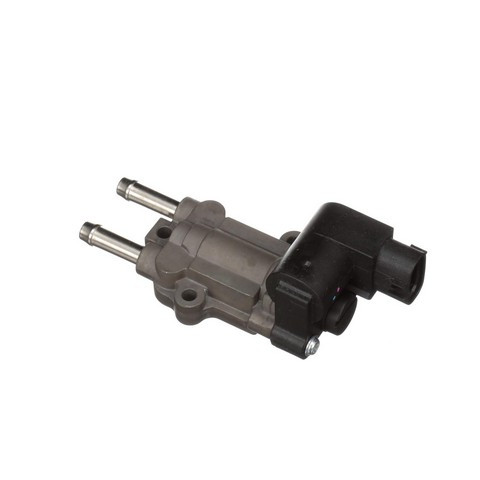

Standard Ignition AC477 idle air control valve for the 2002-2006 Toyota Corolla 4-cylinder 1.8L and other vehicles controls the air that keeps the engine idling. A stepping motor moves the pintle to meter air around the closed throttle, which holds idle speed steady.
A rough or hunting idle, stalling at stops, or an idle speed that sits too high or too low can point to a worn idle air control valve. A vacuum leak, a dirty throttle body or a faulty throttle position sensor can be behind those signs too, so find the cause before buying a new valve.
It also fits the 2003-2006 Toyota Matrix 4-cylinder 1.8L and the 2003-2006 Pontiac Vibe 4-cylinder 1.8L.
Fit and size
Build and materials
One idle air control valve with a gasket or seal. This listing holds one valve, and the car takes one.
Is the AC477 an idle air control valve for the 2003-2006 Toyota Matrix 4-cylinder 1.8L?
Yes. The Standard Ignition AC477 is listed for the 2003-2006 Toyota Matrix with the 4-cylinder 1.8L engine, and that car takes one valve.
Will this idle air control valve work on the 2003-2006 Pontiac Vibe 4-cylinder 1.8L?
Yes. This valve is listed for the 2003-2006 Pontiac Vibe with the 4-cylinder 1.8L engine, and one valve is needed.
Does the AC477 come with a gasket or seal?
Yes. The Standard Ignition AC477 includes a gasket or seal. The listing holds one idle air control valve.
How many terminals does the Standard Ignition AC477 connector have?
The AC477 has a rectangular connector with 3 terminals. It also has 2 hose connectors.
What kind of magnet does this idle air control valve use?
It uses a polymer-blended, isotropic neodymium/iron/boron magnet for accurate control of the pintle and airflow. The motor also has a shielded ball bearing that resists environmental contaminants.
