Ignition Control Module for 1995-1997 Toyota Corolla & More - Standard Ignition LX-721

$240.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: LX-721
    UPC: 091769271381
    Condition: New
    Weight: 0.31 LBS
    Item Package Quantity: 1
    $240.99
    Adding to cart… The item has been added

    Have questions?

    Standard Ignition Ignition Control Module P/N:LX-721
    Standard Ignition Ignition Control Module P/N:LX-721
    $240.99
    $240.99

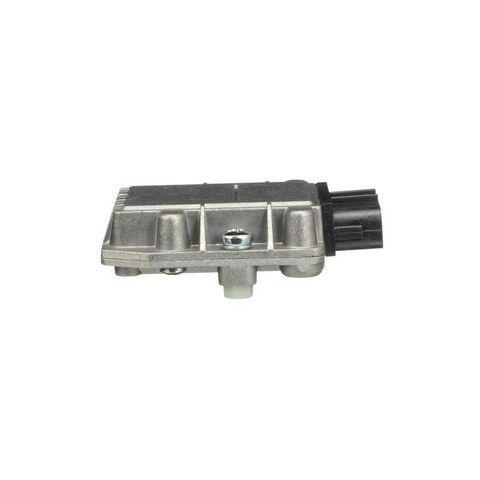

    Standard Ignition LX-721 ignition control module for the 1995-1997 Toyota Corolla 4-cylinder 1.8L, the 1996-1997 Corolla 4-cylinder 1.6L and other vehicles controls the current to the ignition coils so the spark plugs fire on time. The design targets the inherent failure issues of the original ignition module.

    • Copper slug heat sinks draw heat away from the module to protect it from heat damage
    • High-temperature polymer housing reduces moisture intrusion and minimizes vibration damage
    • Double wire bonds hold the connections together under intense vibration and a tough operating environment
    • Durability tested for 500 thermal cycles from -40C to +125C
    • Responds to a weak crankshaft position sensor signal and starts energizing the coils immediately for cold-weather starts

    Quick facts

    • Part: Standard Ignition LX-721 ignition control module
    • Fits: 1995-1997 Toyota Corolla 4-cylinder 1.8L, the 1996-1997 Corolla 4-cylinder 1.6L and other vehicles
    • Condition: New

    Hard starting, a misfire or an engine that stalls or cuts out can be signs of a worn module. Before you replace it, rule out the crankshaft position sensor, the ignition coils and the wiring connector, since weak spark has more than one source.

    Fits

    The vehicles it fits include the 1996-1997 Toyota RAV4 4-cylinder 2.0L, the 1995-1996 Toyota Tacoma 4-cylinder 2.7L and the 1995-1997 Tacoma 4-cylinder 2.4L, and each takes one module. If your car is not named here, look up its year and engine in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Voltage: 12 V
    • Connector: 1 rectangular female connector
    • Terminals: 5 male blade terminals
    • Attachment method: bolt-on
    • Mounting location: fender

    Build and materials

    • Ignition type: distributorless
    • Housing: high-temperature polymer
    • Heat sinks: copper slug
    • Condition: New
    • Country of origin: United States

    In the box

    One ignition control module. Mounting hardware, a mounting bracket, instructions and an ignition coil are not included, so plan on new bolts, since the old ones may not be reusable.

    Interchange: CBE606 · JA1090 · TP211 · 88921563 · 94855787 · 8962016020 · 8962026010 · 8962116020 · 8962126010

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    CBE606, JA1090, TP211, 88921563, 94855787, LX-721, 8962016020, 8962026010, 8962116020, 8962126010

    Frequently Asked Questions

    Is this ignition control module for the 1995-1997 Toyota Tacoma 4-cylinder 2.4L the right one?

    Yes. Standard Ignition LX-721 fits the 1995-1997 Toyota Tacoma 4-cylinder 2.4L and the 1995-1996 Tacoma 4-cylinder 2.7L, one module per truck; other years and engines are in the "Vehicles it fits" section.

    Does the Standard Ignition LX-721 come with mounting hardware or a coil?

    No. This listing is one ignition control module; mounting hardware, a mounting bracket, instructions and an ignition coil are not included.

    What connector and terminals does this ignition control module have?

    It has one rectangular female connector with five male blade terminals. The module runs on 12 volts and is for distributorless ignition systems.

    How was the LX-721 tested for heat and cold?

    Standard Ignition LX-721 is durability tested for 500 thermal cycles from -40C to +125C. Copper slug heat sinks and a high-temperature polymer housing are part of the design.

    Which symptoms can a failing ignition control module produce?

    Hard starting, a misfire, or an engine that stalls or cuts out can be signs. A shop can test the module and the rest of the ignition system.
