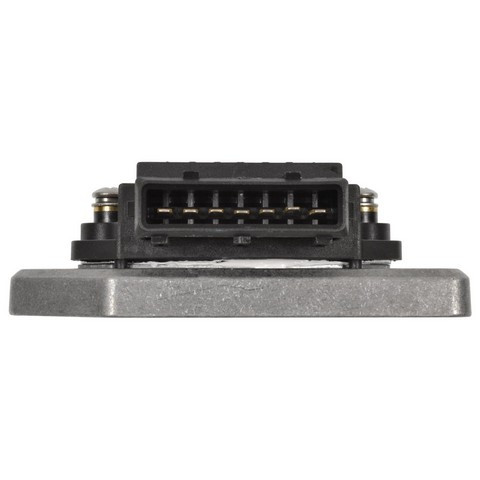

Standard Ignition LX-925 ignition control module for the 1992-1995 Volvo 940 4-cylinder 2.3L and other vehicles energizes the ignition coils in a distributorless ignition system. When an original module has failed, this Standard Ignition control module is designed to fix the inherent failure issues of the original.
- Copper slug heat sinks dissipate heat to protect the module from heat damage
- High-temperature polymer housing that reduces moisture intrusion and minimizes vibration damage
- Double wire bonds for dependable connections under intense vibration
- Module durability tested for 500 thermal cycles from -40C to +125C
- Module responds to a weak crankshaft position sensor signal and begins energizing the coils immediately for cold-weather starts
Quick facts
- Part: Standard Ignition LX-925 ignition control module
- Fits: the 1992-1995 Volvo 940 4-cylinder 2.3L and other vehicles
- Condition: New
A failing module can show up as hard starting, a misfire or an engine that stalls or will not start. Before you replace the ignition control module, rule out the crankshaft position sensor, a weak coil and a damaged connector, because any of them can also bring on those symptoms.
Fits
The vehicles it fits include the 1992-1995 Volvo 940 4-cylinder 2.3L, the 1990-1993 Volvo 240 4-cylinder 2.3L, and the 1985-1986 Volvo 740 6-cylinder 2.4L and the 1985-1992 740 4-cylinder 2.3L. A 1992-1995 Volvo 940 4-cylinder 2.3L takes one module.
Specifications
Fit and size
- Quantity per vehicle: 1
- Voltage: 12 V
- Terminals: 7, male blade
- Connector: 1, female
- Mounting location: External
Build and materials
- Ignition type: Distributorless
- Attachment method: Bolt on
- Mounting bracket: Included
- Condition: New
- Country of origin: China
In the box
One ignition control module with its mounting bracket. Mounting hardware, the coil and instructions are not included, so plan on new bolts, since the old ones may not be reusable.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Does the Standard Ignition LX-925 fit the 1990-1993 Volvo 240 4-cylinder 2.3L?
Yes, the Standard Ignition LX-925 fits the 1990-1993 Volvo 240 4-cylinder 2.3L. For a different Volvo, look up your own year and engine in the "Vehicles it fits" section on this page.
Does this ignition control module come with a mounting bracket?
Yes, the Standard Ignition LX-925 includes a mounting bracket. Mounting hardware, the coil and instructions are not included.
What voltage and terminal count does the LX-925 module have?
This module is a 12 V unit with 7 male blade terminals and 1 female connector. It mounts externally and attaches bolt-on.
Is this ignition module tested for temperature extremes?
Yes. It is durability tested for 500 thermal cycles from -40C to +125C. Double wire bonds keep its connections dependable under intense vibration.
Is this module right for the 1985-1986 Volvo 740 6-cylinder 2.4L?
Yes. The Standard Ignition LX-925 fits the 1985-1986 Volvo 740 6-cylinder 2.4L and the 1985-1992 740 4-cylinder 2.3L.
