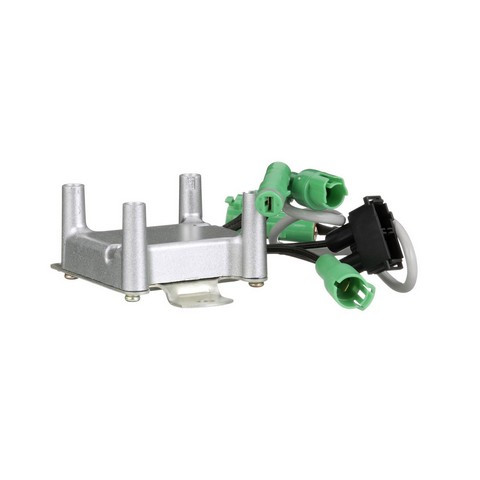

Ignition Control Module for 1984 Toyota 4Runner & More - Standard Ignition LX-796

$631.99

Vehicles this part fits

    Part number: LX-796
    UPC: 091769330286
    Condition: New
    Weight: 1.00 LBS
    Item Package Quantity: 1
    $631.99
    Adding to cart… The item has been added

    Have questions?

    Standard Ignition Ignition Control Module P/N:LX-796
    Standard Ignition Ignition Control Module P/N:LX-796
    $631.99
    $631.99

    Standard Ignition LX-796 ignition control module for the 1984 Toyota 4Runner 4-cylinder 2.4L and other vehicles energizes the ignition coils. It responds to a weak signal from the crankshaft position sensor and begins energizing the coils immediately for better starts in cold weather.

    • Copper slug heat sinks that carry heat away so heat does not damage the module
    • High-temperature polymer housing that reduces moisture intrusion and minimizes vibration damage
    • Double wire bonds that hold connections under intense vibration
    • Durability tested for 500 thermal cycles from -40C to +125C

    Quick facts

    • Part: Standard Ignition LX-796 ignition control module
    • Fits: 1984 Toyota 4Runner 4-cylinder 2.4L and other vehicles

    Hard starts in cold weather, a misfire or stalling can mean the module is failing. A weak coil, a worn crankshaft position sensor or damaged wiring can be behind these signs too, so find the cause before buying a module. When the original module fails, this one is designed to fix its inherent failure issues.

    Fits

    It fits the 1984 Toyota 4Runner 4-cylinder 2.4L, the 1982-1984 Toyota Pickup 4-cylinder 2.4L and the 1982-1983 Toyota Celica 4-cylinder 2.4L. The engine takes a single module.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Voltage: 12 V
    • Ignition type: Distributorless
    • Connectors: 5, round, female
    • Terminals: 9, male blade

    Build and materials

    • Housing: high-temperature polymer
    • Heat sinks: copper slug
    • Attachment method: Bolt on
    • Country of origin: Taiwan

    In the box

    One ignition control module with mounting hardware. The coil, a mounting bracket and instructions are not included.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Does the Standard Ignition LX-796 fit a 1982-1983 Toyota Celica 4-cylinder 2.4L?

    Yes. Standard Ignition LX-796 fits the 1982-1983 Toyota Celica 4-cylinder 2.4L, and the engine takes one module.

    Does this ignition control module come with a coil or mounting bracket?

    No. Standard Ignition LX-796 comes with mounting hardware, but the coil, a mounting bracket and instructions are not included.

    What connectors and terminals does this ignition control module have?

    This module has five round female connectors and nine male blade terminals. It runs on 12 volts.

    Is the Standard Ignition LX-796 tested for temperature swings?

    Yes. It is durability tested for 500 thermal cycles from -40C to +125C, and double wire bonds are used for better connections under intense vibration.

    Is this a distributorless ignition control module?

    Yes. Standard Ignition LX-796 is made for a distributorless ignition, and its mounting hardware is included for a bolt-on attachment.
