Ignition Control Module for 1994-1995 Toyota Camry & More - Standard Ignition LX-860

$610.99

Vehicles this part fits

    Part number: LX-860
    UPC: 091769367343
    Condition: New
    Weight: 0.40 LBS
    Item Package Quantity: 1
    $610.99
    Adding to cart… The item has been added

    Have questions?

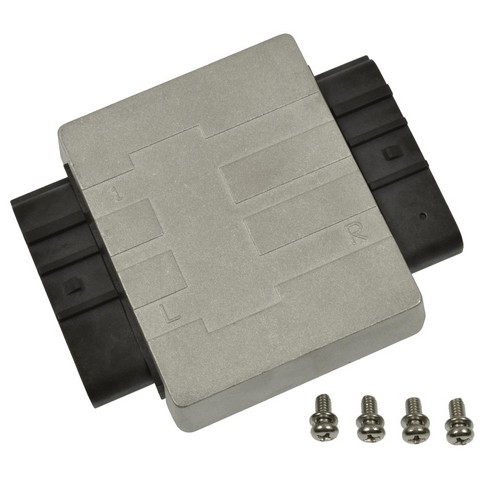

    Standard Ignition Ignition Control Module P/N:LX-860
    Standard Ignition Ignition Control Module P/N:LX-860
    $610.99
    $610.99

    Standard Ignition LX-860 ignition control module for the 1994-1995 Toyota Camry V6 3.0L and other vehicles energizes the ignition coils on the signal from the crankshaft position sensor. It is designed to fix the inherent failure issues of the original equipment module.

    • Copper slug heat sinks that carry heat away from the module to prevent heat damage
    • High-temperature polymer housing that reduces moisture intrusion and minimizes vibration damage
    • Double wire bonds for secure connections under intense vibration
    • Durability tested for 500 thermal cycles from -40C to +125C
    • Module that begins energizing the coils immediately on a weak crankshaft position sensor signal, for cold-weather starts

    Quick facts

    • Part: Standard Ignition LX-860 ignition control module
    • Fits: 1994-1995 Toyota Camry V6 3.0L and other vehicles
    • Condition: New

    A failing ignition control module can show up as hard starting, a misfire or a no-start. Those signs alone do not prove the module is the problem, since a weak crankshaft position sensor can also make the engine hard to start. If the module is the cause, this one replaces it.

    Fits

    This ignition control module fits the 1994-1995 Toyota Camry V6 3.0L and the 1994-1995 Lexus ES300 V6 3.0L.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Connectors: 2, rectangular, female
    • Terminals: 8, blade, male
    • Voltage: 12 V
    • Attachment method: bolt on

    Build and materials

    • Ignition type: distributorless
    • Housing: high-temperature polymer
    • Heat sinks: copper slug
    • Condition: New
    • Country of origin: China

    In the box

    One ignition control module; the 1994-1995 Toyota Camry V6 3.0L takes one. The coil, mounting bracket, mounting hardware and instructions are not included, so plan on new bolts, as the old ones may not be reusable.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is this the control module for the 1994-1995 Toyota Camry V6 3.0L?

    Yes. Standard Ignition LX-860 fits the 1994-1995 Toyota Camry V6 3.0L and the 1994-1995 Lexus ES300 V6 3.0L.

    Does this Standard Ignition control module come with a coil or bracket?

    No. The Standard Ignition LX-860 is the module alone. The coil, mounting bracket, mounting hardware and instructions are not included.

    What voltage and connectors does this ignition control module use?

    It is a 12-volt module with two rectangular female connectors and eight male blade terminals.

    What symptoms can a failing distributorless ignition control module cause?

    Hard starting, a misfire or a no-start can be signs. A shop can test the ignition system to see whether the module is at fault.

    How was the LX-860 ignition control module tested for temperature swings?

    This Standard Ignition LX-860 ignition control module is durability tested for 500 thermal cycles from -40C to +125C. It has copper slug heat sinks and a high-temperature polymer housing.
