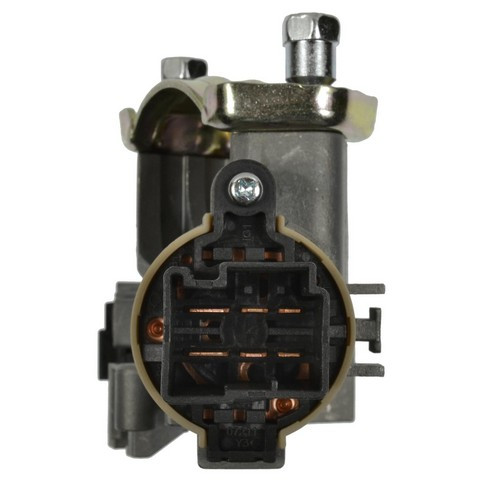

Standard Ignition US-733 ignition lock cylinder and switch for the 2002-2003 Mazda PROTEGE5 and other vehicles lets the key turn on the ignition and start the engine. The Standard Ignition switch joins the lock cylinder and the electrical switch in one assembly that mounts at the column.
- Copper alloy conductors with low resistive losses
- Each unit tested for mechanical and electrical switching performance
- Eight male blade terminals and two female connectors
- Coded lock cylinder with two keys included
- Mounting bracket included
Quick facts
- Part: Standard Ignition US-733 ignition lock cylinder and switch
- Fits: 2002-2003 Mazda PROTEGE5 and other vehicles
- Condition: New
A key that sticks or will not turn, an engine that does not crank, or dash lights that cut out when the key moves can mean the switch is wearing out. Before you replace the ignition lock cylinder and switch, rule out a weak battery, a worn key and a starter fault; a shop can test each of them.
Fits
It fits the 2002-2003 Mazda PROTEGE5 and the 2001-2002 Mazda Protege.
Specifications
Fit and size
- Mounting location: column
- Quantity per vehicle: 1
- Terminals: 8, male blade
- Connectors: 2, female
- Keys: 2 included
- Mounting bracket: included
Build and materials
- Type: ignition switch with lock cylinder
- Coding: coded
- Conductors: copper alloy
- Condition: new
- Country of origin: Taiwan
In the box
One ignition lock cylinder and switch with two keys and a mounting bracket. Mounting hardware and instructions are not included, so plan on new fasteners. This listing holds one, and each vehicle takes one.
Interchange: CS1093 · KS7093 · LA2081 · BLYD76290
This part cross-references / interchanges with the following part numbers:
CS1093, KS7093, LA2081, BLYD76290, US-733
Frequently Asked Questions
Does this Protege switch fit the 2001-2002 Mazda Protege?
Yes. Standard Ignition US-733 fits the 2001-2002 Mazda Protege, and it also fits the 2002-2003 Mazda PROTEGE5.
Does the US-733 ignition lock cylinder and switch come with keys and a mounting bracket?
Yes. Standard Ignition US-733 comes with two keys and a mounting bracket. Mounting hardware and instructions are not included.
How many terminals does this ignition lock cylinder and switch have?
It has eight male blade terminals and two female connectors.
What signs can point to a worn ignition lock cylinder and switch?
A key that sticks or will not turn, no crank when you turn the key, or dash lights that cut out can mean the switch is wearing out. A shop can test the switch itself.
Is each US-733 ignition lock cylinder and switch tested for switching performance?
Yes. Each Standard Ignition US-733 is tested for both mechanical and electrical switching performance.
