Ignition Lock and Cylinder Switch for 2003-2004 Honda Element - Standard Ignition US-605

$323.99

Vehicles this part fits

    Part number: US-605
    UPC: 707390309071
    Condition: New
    Weight: 1.40 LBS
    Item Package Quantity: 1
    $323.99
    Adding to cart… The item has been added

    Have questions?

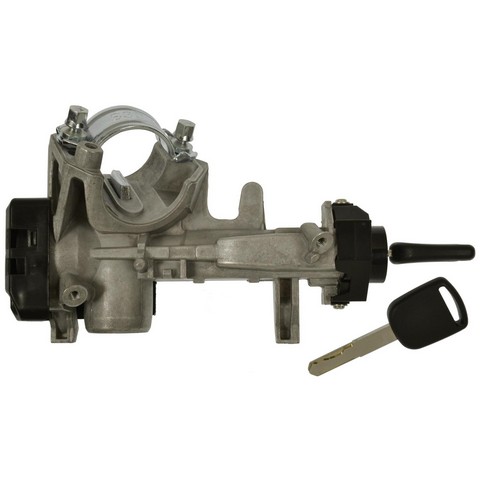

    Standard Ignition Ignition Lock Cylinder and Switch P/N:US-605
    Standard Ignition Ignition Lock Cylinder and Switch P/N:US-605
    $323.99
    $323.99

    Standard Ignition US-605 ignition lock and cylinder switch for the 2003-2004 Honda Element switches the ignition circuits when you turn the key.

    • Copper alloy conductors for electrical conductivity with low resistive losses
    • Every part is tested for mechanical and electrical switching performance
    • Ignition switch and lock cylinder supplied as one assembly with two keys
    • Female connectors with male pin terminals

    Quick facts

    • Part: Standard Ignition US-605 ignition lock and cylinder switch
    • Fits: 2003-2004 Honda Element
    • Condition: New

    A key that sticks or will not turn, or an engine that does not crank with the key in the start position, can mean the lock cylinder or switch is worn. Before you replace this assembly, rule out a weak battery and a worn or damaged key, since either can also keep the engine from cranking.

    Fits

    This ignition lock and cylinder switch is a direct-fit replacement for the 2003-2004 Honda Element, and the vehicle takes one.

    Specifications

    Fit and size

    • Mounting location: column
    • Quantity per vehicle: 1
    • Connector quantity: 3
    • Terminal quantity: 13

    Build and materials

    • Terminal type: pin, male
    • Connector gender: female
    • Coding: coded
    • Key programmable: no
    • Keys included: 2
    • Condition: New
    • Country of origin: Taiwan

    In the box

    One ignition switch and lock cylinder assembly with two keys and a mounting bracket. Mounting hardware is not included, so plan on new fasteners rather than reusing the old ones.

    Installation notes

    • Instructions are included with the part for the installation steps.
    • The assembly is not key programmable.

    Interchange: CS964 · KS6964 · 35100SCVA01 · 35100SCVA01NI · LA8891

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    CS964, KS6964, 35100SCVA01, 35100SCVA01NI, LA8891, US-605

    Frequently Asked Questions

    Does the Standard Ignition US-605 fit the 2003-2004 Honda Element?

    Yes. Standard Ignition US-605 is a direct-fit replacement for the 2003-2004 Honda Element, and the vehicle takes one.

    Does this ignition lock and cylinder switch come with keys?

    Yes. It includes two keys and a mounting bracket. Mounting hardware is not included.

    How many connectors and terminals does this ignition switch have?

    This ignition switch has three female connectors and 13 male pin terminals.

    Can a key that sticks or will not turn mean the ignition lock cylinder is worn?

    It can. A sticking or non-turning key, or an engine that will not crank, can be a sign of a worn lock cylinder or switch, and a shop can test the ignition circuit.

    Does Standard Ignition US-605 replace number 35100SCVA01?

    Yes. 35100SCVA01 is on the interchange list for this Standard Ignition US-605 ignition lock and cylinder switch, along with CS964 and KS6964.
