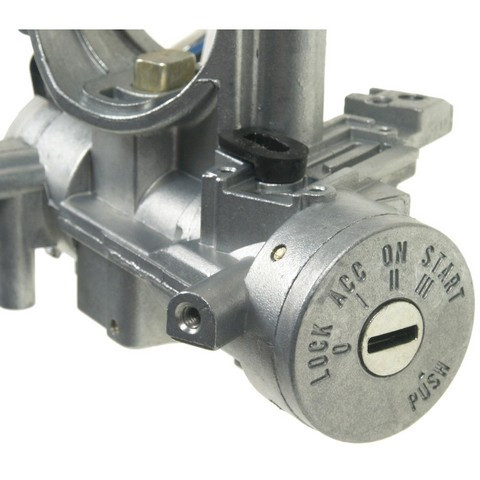

Standard Ignition US-723 ignition lock and cylinder switch for the 1997-1998 Mazda Protege takes your key and switches the ignition circuits on and off. The lock cylinder and switch come as one column-mounted assembly.
- Copper alloy conductors for electrical conductivity with low resistive losses
- Every unit is 100% tested for mechanical and electrical switching performance

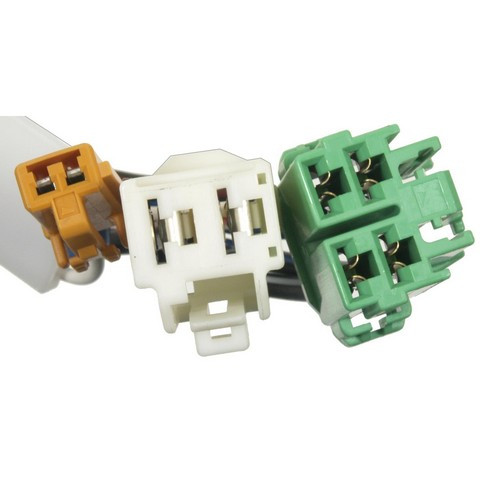

- Three male connectors with eight female blade terminals
- High grade materials chosen for the demands of service professionals
Quick facts
- Part: Standard Ignition US-723 ignition lock and cylinder switch
- Fits: 1997-1998 Mazda Protege
- Condition: New
A key that sticks or turns hard, or an ignition that does not respond to the key, can mean the cylinder or switch is worn. Before replacing the assembly, look your key over for worn or bent edges and compare it with your spare, and inspect the connector for corrosion or loose terminals, because either could be behind the trouble.
Fits
This ignition lock and cylinder switch is a direct-fit replacement for the 1997-1998 Mazda Protege, which takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Mounting location: column
- Connectors: 3, male
- Terminals: 8, female blade
Build and materials
- Type: ignition lock and cylinder switch with coded lock cylinder
- Mounting bracket: included
- Condition: New
- Country of origin: Taiwan
In the box
One ignition lock and cylinder switch with two keys and a mounting bracket. Hardware and instructions are not included, so plan on new fasteners, as the old ones may not be reusable.
Interchange: CS1083 · KS7083 · LA1981 · BC1D76290 · BC1D76290A · BC1D76290B · BC1D76290C · BG1S76290 · BG1S76290B
This part cross-references / interchanges with the following part numbers:
CS1083, KS7083, LA1981, BC1D76290, BC1D76290A, BC1D76290B, BC1D76290C, BG1S76290, BG1S76290B, US-723
Frequently Asked Questions
Is the Standard Ignition US-723 ignition lock and cylinder switch right for the 1997-1998 Mazda Protege?
Yes, Standard Ignition US-723 is listed for the 1997-1998 Mazda Protege, which takes one.
Does the Standard Ignition US-723 come with keys and a mounting bracket?
Yes, Standard Ignition US-723 comes with two keys and a mounting bracket. Hardware and instructions are not included.
How many terminals does this ignition lock and cylinder switch have?
This ignition lock and cylinder switch has eight female blade terminals and three male connectors.
How can I tell if an ignition lock and cylinder switch is worn?
A key that catches, turns stiffly or will not turn can be a sign of wear in the lock cylinder. A shop can test the switch side.
Does the Standard Ignition US-723 replace part number BC1D76290?
Yes, BC1D76290 is one of the numbers that Standard Ignition US-723 replaces.
