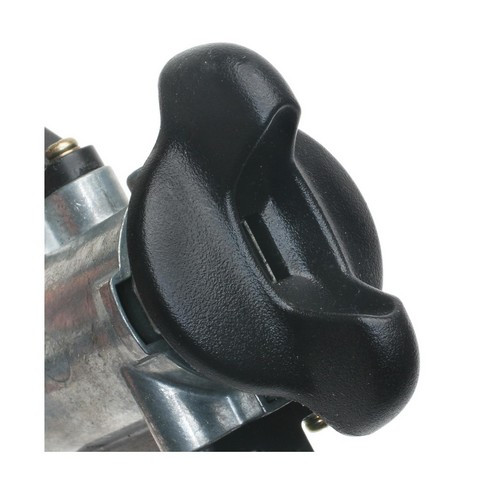

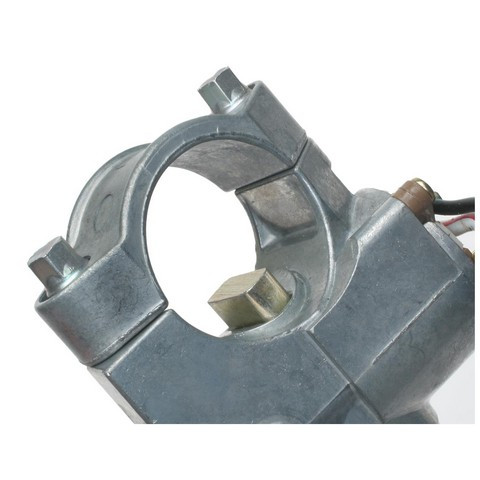

Standard Ignition US-766 switch for the 1996-2002 Mercury Villager carries power to the ignition circuits when the key turns the lock cylinder. The switch comes with its lock cylinder in one unit.
- Copper alloy conductors give low resistive losses
- Each unit is tested for mechanical and electrical switching performance
- Coded lock cylinder with two keys
- Mounting bracket included
Quick facts
- Part: Standard Ignition US-766 switch
- Fits: 1996-2002 Mercury Villager
- Condition: New
A worn ignition switch can show up as a key that is hard to turn, an engine that cuts out, or dash lights that flicker. Before you replace the switch, rule out a weak battery, corroded battery terminals or a failing starter, since each can produce similar starting trouble.
Fits
It is a direct-fit replacement for the 1996-2002 Mercury Villager, which takes one. This listing is one switch with its lock cylinder.
Specifications
Fit and size
- Quantity per vehicle: 1
- Connectors: 2, rectangular, female and male
- Terminals: 8, blade, female and male
- Attachment method: bolt on
Build and materials
- Finish: cast iron, plastic
- Coding: coded
- Condition: New
- Country of origin: Taiwan
In the box
One ignition switch with lock cylinder, two keys and a mounting bracket. Mounting hardware and instructions are not included, so plan on new bolts rather than reusing the old ones.
Interchange: CS1126 · LS915 · KS7126 · 1F5Z11582AA · F6XZ11582CA · F6XZ11582FA · SW5566 · LA2411
This part cross-references / interchanges with the following part numbers:
CS1126, LS915, KS7126, 1F5Z11582AA, F6XZ11582CA, F6XZ11582FA, SW5566, LA2411
Frequently Asked Questions
Will this Villager switch work in a 1996-2002 Mercury Villager?
Yes. The Standard Ignition US-766 is a direct-fit switch for the 1996-2002 Mercury Villager.
Does the Standard Ignition US-766 ignition switch come with keys?
Yes. It comes with two keys and a mounting bracket. Mounting hardware and instructions are not included.
How many terminals does the US-766 ignition switch have?
The Standard Ignition US-766 has eight blade terminals spread across two rectangular connectors, with both female and male ends.
Can a worn ignition switch make the engine cut out while driving?
It can, along with a hard-to-turn key or flickering dash lights, though other faults can cause these too. Have it checked promptly instead of continuing to drive.
Does the US-766 replace OE number F6XZ11582CA?
Yes. F6XZ11582CA is one of the numbers the Standard Ignition US-766 replaces. The Interchange line lists the others.
