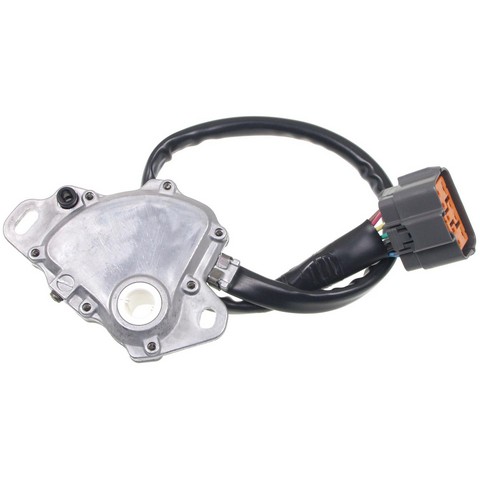

Standard Ignition NS-354 neutral safety switch for the 2005-2006 Mazda MPV allows the engine to crank only in park or neutral. It is a direct-fit replacement made to OE spec for fit, form and function.
- Electrically operated 12V switch with 9 wires
- Metal construction built to withstand extreme conditions
- 100% end-of-line testing on every unit
- Male rectangular connector with 9 female blade terminals on a 16.5 in (419.1 mm) wiring harness
- Bolt-mount attachment
Quick facts
- Part: Standard Ignition NS-354 neutral safety switch
- Fits: 2005-2006 Mazda MPV
- Material: Metal
- Condition: New
A worn switch can show up as an engine that will not crank in park or neutral, or one that cranks in other gears. These signs alone do not prove the switch is at fault, since a weak battery can also keep an engine from cranking. If the original switch is damaged, this one restores the neutral safety function.
Fits
This neutral safety switch fits the 2005-2006 Mazda MPV.
Specifications
Fit and size
- Quantity per vehicle: 1
- Length: 5.1875 in (131.7625 mm)
- Wiring harness length: 16.5 in (419.1 mm)
- Number of wires: 9
- Connector: rectangular, male, 1 connector
Build and materials
- Material: Metal
- Terminals: 9 female blade terminals
- Voltage: 12V
- Attachment method: bolt mount
- Condition: New
- Country of origin: Japan
In the box
One neutral safety switch; the 2005-2006 Mazda MPV takes one. Mounting hardware and gaskets are not included, so plan on new bolts.
Interchange: NS38090 · JA4459 · NS6876 · FP0119444 · FP0119444A · FP0119444B
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
NS38090, JA4459, NS6876, FP0119444, FP0119444A, FP0119444B, NS-354
Frequently Asked Questions
Does the Standard Ignition NS-354 fit the 2005-2006 Mazda MPV?
Yes. Standard Ignition NS-354 is a direct-fit replacement for the 2005-2006 Mazda MPV, and the vehicle takes one switch.
Does this neutral safety switch come with bolts or a gasket?
No. Mounting hardware and gaskets are not included. The listing is one switch with its 16.5 in (419.1 mm) wiring harness.
How many wires and terminals does the NS-354 connector have?
Standard Ignition NS-354 has 9 wires and 9 female blade terminals in one male rectangular connector. It runs on 12V.
Can a worn neutral safety switch stop the engine from cranking in park or neutral?
Yes, it can, and an engine that cranks in other gears is another sign. A shop can test the switch to confirm.
Is the NS-354 tested before it is sold?
Yes. Each Standard Ignition NS-354 undergoes 100% end-of-line testing, and it is made to OE spec for fit, form and function.
