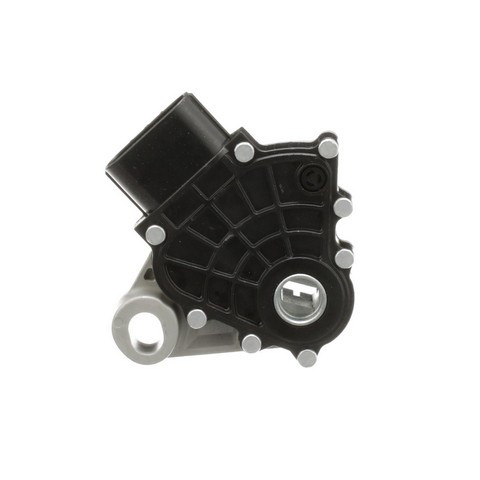

Standard Ignition NS-504 neutral safety switch for the 2005-2015 Toyota Tacoma and other vehicles replaces a damaged OE switch to restore neutral safety function. It is a direct-fit, electrically operated switch made to OE spec for fit, form and function.
- 12V electrical switch
- Rectangular female connector with nine male blade terminals
- Bolt-mount attachment
- Materials selected to withstand extreme conditions
- 100% end-of-line testing on every switch
Quick facts
- Part: Standard Ignition NS-504 neutral safety switch
- Fits: 2005-2015 Toyota Tacoma and other vehicles
- Material: Plastic, Metal
- Condition: New
This switch tells the vehicle when the transmission is in park or neutral, so the engine can start. A worn switch can show up as trouble starting in park or neutral. A no-crank alone does not prove the switch is at fault, since a weak battery can do the same.
Fits
The 2005-2015 Toyota Tacoma, the 2010-2017 Toyota 4Runner and the 2007 Toyota Sequoia are all covered, along with many other Toyota and Lexus models.
Specifications
Fit and size
- Quantity per vehicle: 1
- Length: 4 in (101.6 mm)
- Connector: 1 rectangular
- Terminals: 9
Build and materials
- Voltage: 12V
- Mounting: bolt mount
- Material: plastic and metal
- Finish: aluminum, plastic
- Condition: new
- Country of origin: Taiwan
In the box
One neutral safety switch, and the vehicle needs one. Mounting hardware and gaskets are not included, so plan on new mounting bolts.
Interchange: S41279 · SW8585 · NS6722 · 8454004010 · 8454004020 · 8454060050 · 8454071010
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
S41279, SW8585, NS6722, NS-504, 8454004010, 8454004020, 8454060050, 8454071010
Frequently Asked Questions
Is this Standard Ignition NS-504 switch right for a 2005-2015 Toyota Tacoma?
Yes. The Standard Ignition NS-504 fits the 2005-2015 Toyota Tacoma. If your car is not named on this page, look it up in the "Vehicles it fits" section on the product page.
Is this neutral safety switch right for a 2010-2017 Toyota 4Runner?
Yes. This neutral safety switch fits the 2010-2017 Toyota 4Runner, and that vehicle takes one switch.
Does the NS-504 come with mounting bolts or a gasket?
No. The Standard Ignition NS-504 comes without mounting hardware or gaskets, so plan on new bolts.
How many terminals does this neutral safety switch have?
This neutral safety switch has nine male blade terminals in one rectangular female connector and runs on 12V.
Can a faulty neutral safety switch stop the engine from cranking?
Yes, a faulty switch can stop the starter from engaging in park or neutral. A shop can test the switch to confirm before you replace it.
