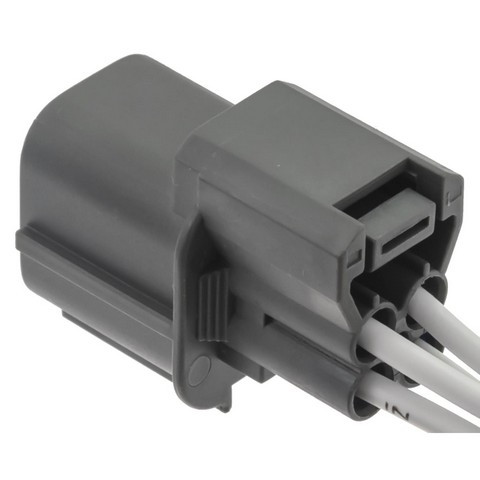

Give a cracked, corroded or heat-damaged oxygen sensor plug a fresh connection with the Standard Ignition Oxygen Sensor Connector S3096, a factory-assembled multi-function connector built to exact OE standards. It is listed for many models from Acura, Honda, Isuzu, Land Rover and Subaru, among them the 1990-2007 Honda Accord, 1999-2005 Honda Civic and 2002-2006 Honda CR-V (engine: All). See the Buyer's Guide tab for the full list. Quantity per application is one or two, depending on the vehicle. This listing is for one connector.
- Built to exact OE standards: Produced in TS16949- and ISO9001-certified facilities and designed for specific vehicle applications.
- Tested throughout production: Each connector goes through thorough quality checks and rigorous testing at every stage of manufacturing.
- Factory-assembled for easier installation: Arrives pre-assembled with a 17.5-inch harness and is designed to simplify installation without specialized tools.
- Specifications: Square connector housing, 1 1/2 in housing length, four blade terminals, four 16-gauge wires and a 0-degree bend angle.
An oxygen sensor connector forms the plug connection between the oxygen sensor circuit and the vehicle's wiring harness, carrying the sensor signal to the engine computer. Signs this connector may need replacing include a cracked or melted housing, corroded or loose terminals, a broken locking tab, or damaged wiring at the plug. If a damaged connector is the cause of an intermittent oxygen sensor signal, this part replaces it. Diagnose the circuit before replacing parts.
Country of origin: Taiwan.
Interchange: PT3873 · CONB11532 · EC3125
This part cross-references / interchanges with the following part numbers:
PT3873, CONB11532, EC3125, S3096
