Starter Solenoid for 1993-1995 Mazda RX-7 - Standard Ignition SS-700

$120.99

Standard Ignition Starter Solenoid SS-700

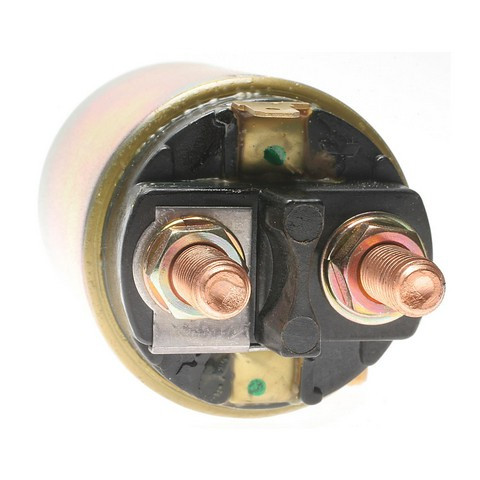

Standard Ignition Starter Solenoid SS-700 - view 2

Standard Ignition Starter Solenoid SS-700 - view 3

Part number: SS-700

UPC: 091769562472

Condition: New

Weight: 1.60 LBS

Item Package Quantity: 1

$120.99

Current Stock: 34

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Standard Ignition Starter Solenoid P/N:SS-700

$120.99

Description

Standard Ignition SS-700 starter solenoid for the 1993-1995 Mazda RX-7 rotary 1.3L closes the circuit that sends battery power to the starter.

Polyester-insulated magnet wire, cadmium-plated copper discs and solid contact bolts reduce voltage drop and protect against electrical overload
Heavy-duty copper contacts reduce the effect of arcing and extend solenoid life
Pure copper windings create the magnetic field that operates the solenoid
Pure copper battery terminal studs reduce resistance and permit higher current flow, even in the hottest environments
High-grade materials for extended service life in the starting system

Quick facts

Part: Standard Ignition SS-700 starter solenoid
Fits: 1993-1995 Mazda RX-7 rotary 1.3L
Condition: New

A single click or no response when you turn the key can mean the solenoid contacts are worn, though a weak battery or corroded cable ends can look the same. With the engine off, look over the battery cables and the solenoid terminals for corrosion or looseness before you replace anything.

Fits

This solenoid is a direct-fit replacement for the 1993-1995 Mazda RX-7 rotary 1.3L, which takes one.

Specifications

Fit and size

Quantity per vehicle: 1
Voltage: 12 V
Length: 2.42 in (61.468 mm)
Mounting holes: 2
Lug hole diameter: 0.18 in (4.572 mm)

Build and materials

Terminals: 3, stud and blade, male
Continuous duty: No
Condition: New
Country of origin: Japan

In the box

One starter solenoid. Hardware, a mounting bracket and a spring are not included, so plan on new fasteners, since the old ones may not be reusable.

Interchange: SS659 · STSB1096 · ST660 · NF0118X10

Product information is for general reference and may contain errors. See our Disclaimer.

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

SS659, STSB1096, ST660, NF0118X10, SS-700

Buyer's Q&A

Frequently Asked Questions

Is the Standard Ignition SS-700 starter solenoid right for a 1993-1995 Mazda RX-7 rotary 1.3L?

Yes. Standard Ignition SS-700 is a direct-fit starter solenoid for the 1993-1995 Mazda RX-7 rotary 1.3L, and that vehicle takes one.

Does the SS-700 starter solenoid come with mounting hardware?

No. This listing is one starter solenoid. Hardware, a mounting bracket and a spring are not included.

What voltage and terminals does this starter solenoid have?

Standard Ignition SS-700 is a 12-volt solenoid with three male terminals, stud and blade type. It has two mounting holes and measures 2.42 in (61.468 mm) long.

Why would a starter solenoid like the SS-700 click without cranking the engine?

A click with no crank can mean the solenoid contacts are worn, though a weak battery can cause it too. A shop can test the battery and the starting circuit.

What are the contacts and studs on the SS-700 solenoid made of?

The solenoid has heavy-duty copper contacts that reduce the effect of arcing and extend solenoid life. Its battery terminal studs are pure copper to reduce resistance.
