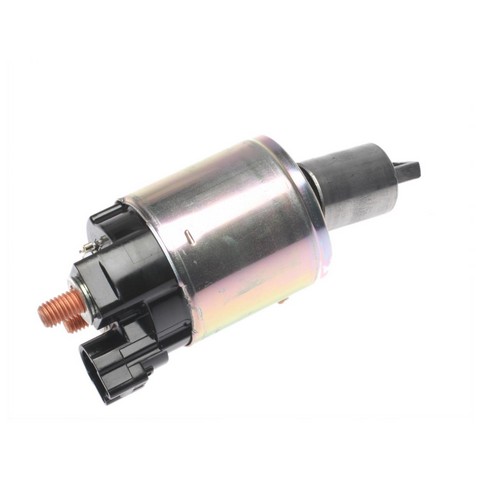

Standard Ignition SS-769 starter solenoid for the 2007-2014 Toyota Tundra V6 4.0L and other vehicles switches battery current to the starter motor.
- Materials chosen to withstand extreme conditions
- Each starter solenoid goes through extensive testing for reliability
- Three male terminals, screw and blade type
- One female connector
- Two mounting holes
Quick facts
- Part: Standard Ignition SS-769 starter solenoid
- Fits: 2007-2014 Toyota Tundra V6 4.0L and other vehicles
- Condition: New
A worn starter solenoid can show up as a click with no cranking, slow or intermittent cranking, or no response when you turn the key. Those signs alone do not prove the solenoid is at fault, because a weak battery also gives a click and no crank.
Fits
This starter solenoid is a direct-fit OE replacement for the 2007-2014 Toyota Tundra V6 4.0L, the 2003-2008 Toyota Corolla 4-cylinder 1.8L, the 2008-2014 Scion xD 4-cylinder 1.8L and other vehicles, with one solenoid per vehicle.
Specifications
Fit and size
- Quantity per vehicle: 1
- Voltage: 12 V
- Length: 1.87 in (47.498 mm)
- Mounting holes: 2
- Lug hole diameter: 0.19 in (4.826 mm)
- Terminals: 3, screw and blade, male
- Connector: 1, female
Build and materials
- Condition: New
- Continuous duty: No
- Country of origin: China
In the box
One starter solenoid. Mounting hardware, a mounting bracket and a spring are not included.
Interchange: S41306 · SS1003 · ST608 · 2822622060 · 2822622061
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
S41306, SS1003, ST608, SS-769, 2822622060, 2822622061
Frequently Asked Questions
Is SS-769 the right starter solenoid for a 2007-2014 Toyota Tundra V6 4.0L?
Yes, Standard Ignition SS-769 is listed for the 2007-2014 Toyota Tundra V6 4.0L, one per vehicle. For a different car, look it up in the "Vehicles it fits" section to see whether SS-769 is listed for it.
Is this a starter solenoid for the 2003-2008 Toyota Corolla 4-cylinder 1.8L?
Yes, this starter solenoid is listed for the 2003-2008 Toyota Corolla 4-cylinder 1.8L, and that car takes one.
Does the SS-769 starter solenoid come with mounting hardware?
No. Hardware, a mounting bracket and a spring are not included, so this listing is the solenoid alone.
What terminals does this starter solenoid have?
This starter solenoid has three male screw and blade terminals and one female connector, plus two mounting holes. It is a 12-volt part.
Does Standard Ignition SS-769 replace number 2822622060?
Yes, 2822622060 is one of the numbers Standard Ignition SS-769 replaces, along with 2822622061, S41306, SS1003 and ST608.
