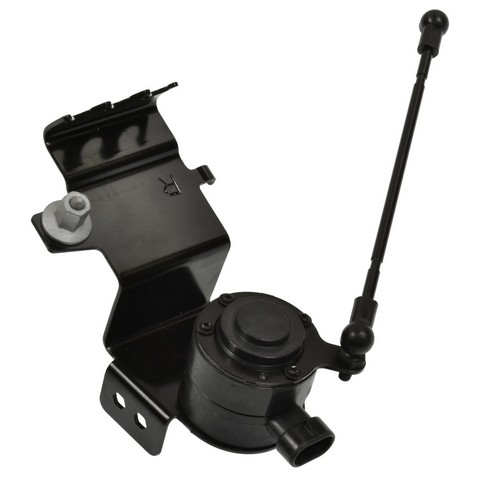

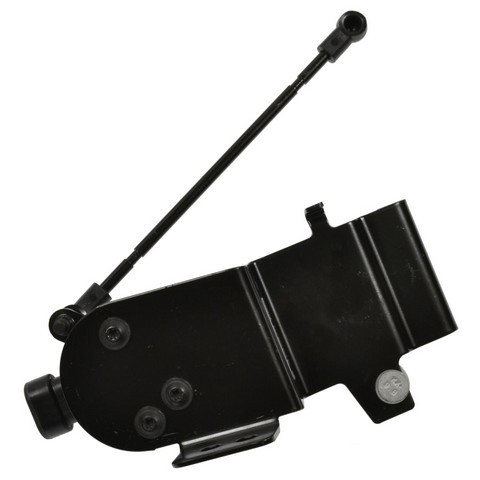

Standard Ignition VHS109 front right ride height sensor for the 2006-2011 Buick Lucerne and other vehicles reads suspension height for the self-leveling system. Also called a suspension ride height sensor, it is a direct-fit replacement for a unit commonly damaged in wrecks.
- 100% tested for proper fit, form and function
- Reads ride height position against air pressure to help restore suspension self-leveling without cross-loading
- Designed and manufactured to stringent quality standards
- Female rectangular plug-in connector with three male blade terminals
Quick facts
- Part: Standard Ignition VHS109 ride height sensor
- Also called: suspension ride height sensor
- Fits: 2006-2011 Buick Lucerne and other vehicles
- Position: Front right
- Condition: New
A failing ride height sensor can show up as a car that sits low or uneven, or as a suspension or leveling warning. These signs alone do not prove the sensor is at fault, since a leak in the air system can produce them too.
Fits
This is a ride height sensor for the 2006-2011 Buick Lucerne and the 2006-2011 Cadillac DTS. Both take one at the front right. This listing is a single sensor, and the sensor for the opposite side is ordered separately.
Specifications
Fit and size
- Position: Front right
- Quantity per vehicle: 1 for this side
- Connector: rectangular, female, plug-in, 1 connector
- Terminals: 3 male blade terminals
Build and materials
- Contents: sensor, linkage and mounting bracket
- Condition: New
- Country of origin: Mexico
In the box
One ride height sensor with its linkage and mounting bracket.
Interchange: VRH109 · MSSC20001 · 25767359 · RHS105
This part cross-references / interchanges with the following part numbers:
VRH109, MSSC20001, 25767359, RHS105
Frequently Asked Questions
Is the VHS109 a 2006-2011 Cadillac DTS sensor?
Yes. Standard Ignition VHS109 is a front right ride height sensor that fits the 2006-2011 Cadillac DTS.
Does the VHS109 come with the linkage and mounting bracket?
Yes. Standard Ignition VHS109 comes complete with the sensor, linkage and mounting bracket.
What kind of connector does this front right ride height sensor have?
This sensor has one rectangular, female plug-in connector with three male blade terminals.
How can I tell if a ride height sensor is going bad?
The car may sit low or uneven, or a suspension or leveling warning may show. A shop can test the sensor and the air system.
Does RHS105 interchange with the VHS109?
Yes. RHS105 is listed as an interchange number for Standard Ignition VHS109, along with VRH109, MSSC20001 and 25767359.
