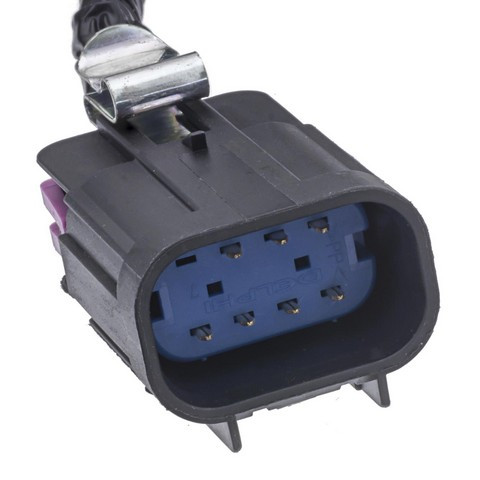

Standard Ignition S2387 tail light connector for the 2010-2016 Chevrolet Impala connects the tail light wiring to the vehicle harness. This multi-function connector has an oval plastic body and metal contact terminals.
- Wiring harness 77 in long with 8 wires
- Weatherproof sealed and weather resistant
- Blade terminals with a push-on attachment and 18 gauge wire
- Checked and tested at every stage of production
Quick facts
- Part: Standard Ignition S2387 tail light connector
- Fits: 2010-2016 Chevrolet Impala
- Material: Plastic
Flickering or dead tail lights, melted plastic or corroded terminals can mean the connector is worn. A burned-out bulb, a worn bulb socket, a blown fuse or a bad ground can be behind a dead tail light too, so find the cause before buying.
Fits
This tail light connector fits the 2010-2016 Chevrolet Impala.
Specifications
Fit and size
- Quantity per vehicle: 1
- Connector shape: Oval
- Connector length: 1 1/8, 1 1/4, 1 3/4 in
- Connector quantity: 4

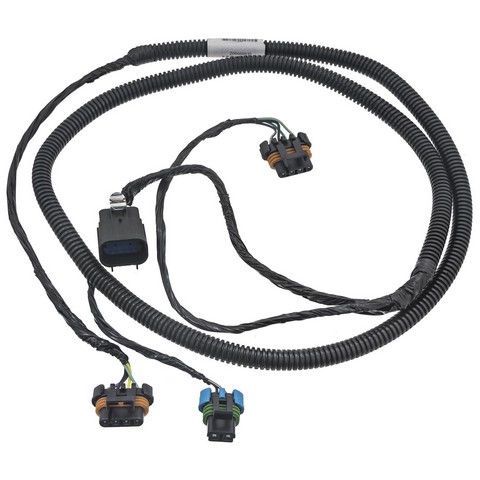

- Wiring harness length: 77 in (1955.8 mm)
- Number of wires: 8
- Wire gauge: 18
- Terminal quantity: 2, 4, 4, 8
Build and materials
- Material: Plastic
- Contact terminal material: Metal
- Terminal type: Blade
- Connector and terminal gender: Male, Female
- Attachment method: Push on
- Weatherproof sealed and weather resistant
- Country of origin: Taiwan
In the box
One tail light connector with its wiring harness. The 2010-2016 Chevrolet Impala takes one. Splice connectors and a dust shield are not included.
Installation notes
- Comes factory-assembled.
- No specialized tools are needed.
Interchange: PT2370 · CONB11252 · EC2287 · 10348632
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
PT2370, CONB11252, EC2287, 10348632
Frequently Asked Questions
Is the Standard Ignition S2387 tail light connector right for a 2010-2016 Chevrolet Impala?
Yes. Standard Ignition S2387 fits the 2010-2016 Chevrolet Impala, which takes one connector.
Does the S2387 tail light connector come with its wiring harness?
Yes, Standard Ignition S2387 includes the wiring harness, 77 in (1955.8 mm) long with 8 wires of 18 gauge; splice connectors and a dust shield are not included.
Is this tail light connector weatherproof?
Yes. This tail light connector is weatherproof sealed and weather resistant, with an oval plastic body and metal blade terminals.
How can I tell if a tail light connector's terminals are worn?
With the lights off, look for melted plastic, corrosion on the blade terminals or a plug that sits loose. Those signs can mean the connector is worn.
Does the S2387 connector need special tools to install?
No. Standard Ignition S2387 is factory-assembled with a push-on attachment, and specialized tools are not needed.
