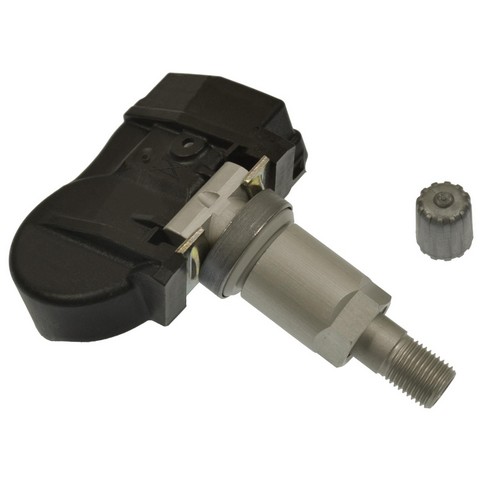

Keep your tire pressure monitoring system reporting accurately with the Standard Ignition TPMS Sensor TPM145. This wheel-mounted sensor reads the pressure inside the tire and transmits it by radio frequency to the vehicle, so the TPMS can alert you when a tire runs low. It installs as a direct-fit replacement across a range of Jaguar and Land Rover models, including the 2005-2008 Jaguar S-Type, 2004-2009 Jaguar XJ8, 2009-2012 Jaguar XF, 2005-2015 Jaguar XKR, and 2009-2011 Land Rover Range Rover — see the Buyer's Guide tab for the full list of applications.
- Direct OE replacement: matches OE fit, form, and function, and is built to meet or exceed OE performance under SAE2657.
- Factory pre-programmed: ready to install and OE-relearn straight out of the box.
- Clamp-in design: mounts to the wheel with a metal inflation valve; mounting hardware is included and the sensor nut torques to 71 in/lbs.
- Built to spec: battery-powered, 433 MHz frequency, nickel-coated core, and a bolt-on connector.
Interchange: 92-1251 · 921251 · C2C40725 · C2C41655 · C2S40710 · C2Z15016 · C2Z31510 · XR855949 · LR010532 · LR018861 · LR032835 · LR086928. Manufacturer part number TPM145. Country of origin: France.
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
What does this TPMS sensor do?
It mounts inside the wheel, reads the tire's air pressure, and transmits the reading by 433 MHz radio frequency to the vehicle so the tire pressure monitoring system can warn you of a low tire.
Will this sensor fit my vehicle?
It's a direct-fit replacement for many Jaguar and Land Rover models, such as the Jaguar S-Type, XF, XJ8, XKR and the Land Rover Range Rover. Check the Buyer's Guide tab to confirm your exact year and model.
Is the sensor pre-programmed?
Yes. It's pre-programmed at the factory and ready to install and OE-relearn out of the box, following the vehicle's relearn procedure.
How many sensors do I need?
The listed applications use four per vehicle. This listing is sold per the stated package quantity of one, so order the number of sensors your vehicle requires.
How is it mounted?
It's a clamp-in sensor with a metal inflation valve and a bolt-on connector. Mounting hardware is included, and the sensor nut torques to 71 in/lbs per the service procedure.
