Standard Ignition TCM109 transfer case motor for the 2009-2011 Ford F-150 and other vehicles moves the transfer case shift mechanism when you change drive modes. The part is new.
- 100% testing verifies both mechanical and electrical performance

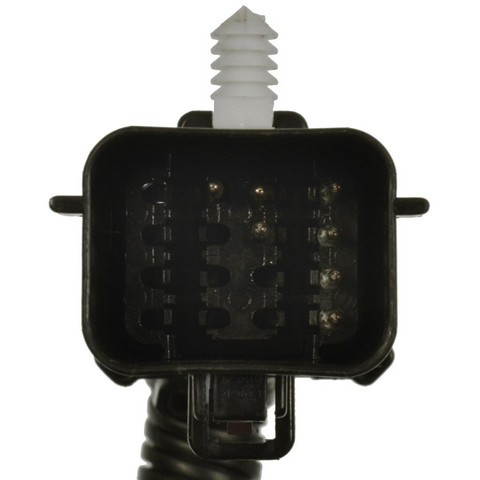

- Seven male pin terminals in a single female connector
- Supplied as one actuator
Quick facts
- Part: Standard Ignition TCM109 transfer case motor
- Fits: 2009-2011 Ford F-150 and other vehicles
- Condition: New
If four-wheel drive will not engage or release, the shift is slow, or the 4WD indicator light flashes, a worn transfer case motor can be one reason. Wiring, a corroded connector or a fault inside the transfer case itself can also be behind these symptoms, so pin down the cause before you buy.
Fits
This transfer case motor is a direct-fit OE replacement for the 2009-2011 Ford F-150, the 2008-2011 Ford Expedition and the 2010-2011 Lincoln Mark LT, with one motor needed per vehicle.
Specifications
Fit and size
- Quantity per vehicle: 1
- Terminal quantity: 7
- Connector quantity: 1
Build and materials
- Terminal type: pin, male
- Connector gender: female
- Condition: New
- Country of origin: China
In the box
One transfer case motor actuator. Mounting hardware is not included, so plan on new fasteners, since the old ones may not be reusable.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Does the Standard Ignition TCM109 fit a 2009-2011 Ford F-150?
Yes. Standard Ignition TCM109 is a direct-fit OE replacement for the 2009-2011 Ford F-150, and the truck takes one.
Will this Expedition transfer case motor work on a 2008-2011 Ford Expedition?
Yes. Standard Ignition TCM109 is a direct-fit OE replacement for the 2008-2011 Ford Expedition, and the vehicle needs one motor.
Does the TCM109 transfer case motor come with mounting bolts?
No. The listing is one transfer case motor actuator, and mounting hardware is not included, so plan on new fasteners.
How many pins are in the TCM109 connector?
This transfer case motor has seven male pin terminals in a single female connector.
How is this transfer case motor tested?
Each unit undergoes 100% testing to verify both mechanical and electrical performance.
