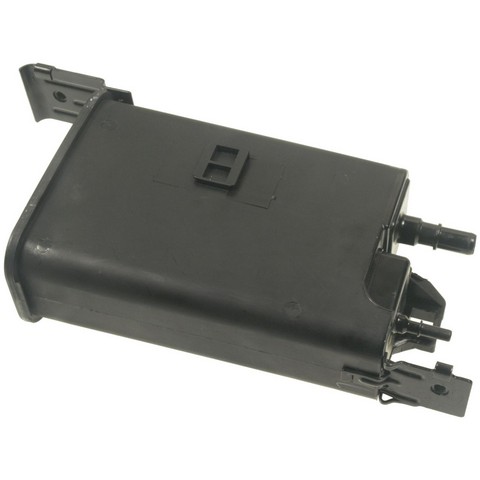

Standard Ignition CP3196 vapor canister for the 2002-2004 Chevrolet Suburban 1500 V8 5.3L holds fuel vapor from the tank. The evaporative emission system later draws that vapor off to the engine instead of venting it.
- Housing designed to withstand temperature changes, chemicals and debris
- Tested in the lab and on vehicles for correct operation of the evaporative emission system
Quick facts
- Part: Standard Ignition CP3196 vapor canister
- Fits: 2002-2004 Chevrolet Suburban 1500 V8 5.3L
- Condition: New
A worn or leaking canister can show up as a fuel smell around the vehicle or a check engine light. Before you replace the canister, rule out a loose fuel cap, a damaged vapor hose and a faulty purge valve, since those can show similar signs.
Fits
It is a direct-fit OE replacement for the 2002-2004 Chevrolet Suburban 1500 V8 5.3L, with an OE-matched connector and terminals. It is engineered for higher-mileage GM vehicles. This listing is one canister, and the vehicle needs one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Length: 15.75 in

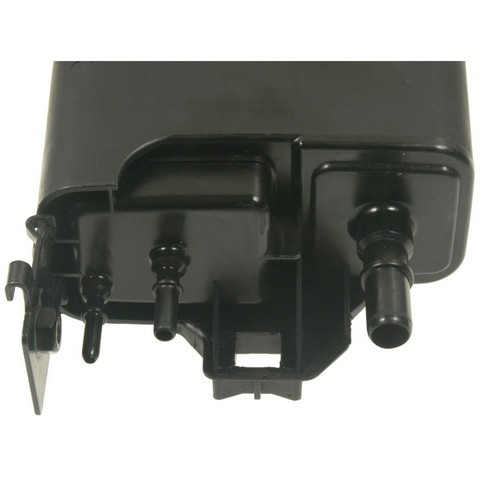

- Port quantity: 2
- Hose connector quantity: 3
- Hose sizes: 1/4 in, 5/16 in, 5/8 in
Build and materials
- Condition: New
- Country of origin: China
In the box
One vapor canister with its filter element.
Interchange: 2-70060
CP1336 · VC4108 · 15746226
This part cross-references / interchanges with the following part numbers:
CP1336, VC4108, 2-70060, 15746226
Frequently Asked Questions
Is this the vapor canister for a 2002-2004 Chevrolet Suburban 1500 V8 5.3L?
Yes. The Standard Ignition CP3196 is made for the 2002-2004 Chevrolet Suburban 1500 V8 5.3L as a direct-fit OE replacement, and its connector and terminals are OE-matched.
Does the Standard Ignition CP3196 come with a filter element?
Yes. Standard Ignition CP3196 includes its filter element.
What hose sizes does this vapor canister use?
It has three hose connectors for 1/4, 5/16 and 5/8 inch hose sizes, plus two ports. Its length is 15.75 inches.
Can a fuel smell mean the vapor canister is failing?
It can, but other parts of the evaporative system can cause a fuel smell too. A shop can run a smoke or pressure test, so don't open fuel lines yourself.
Has this canister been tested for the evaporative emission system?
Yes. This canister is tested in the lab and on vehicles so the complex evaporative emission system operates as the OE intended.
