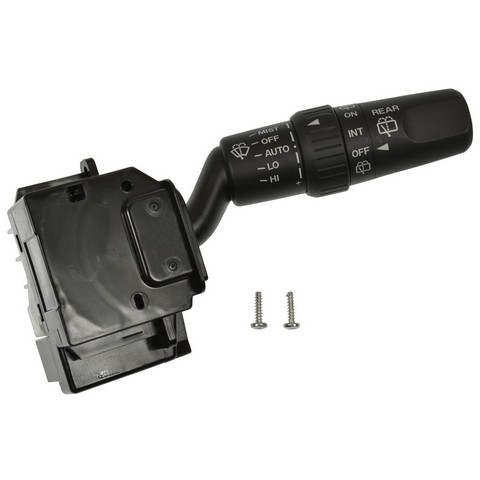

Standard Ignition WP-514 windshield wiper switch for the 2009 Mazda 5 gives the driver control of the windshield wiper functions. If the old switch is why the wipers stopped responding, the Standard Ignition switch replaces it.
- Copper alloy conductors keep resistive losses low
- Every switch is tested for mechanical and electrical switching performance
- Three wiper speed settings and four delay settings
- Windshield and rear window washer spray control
- Rear window wiper speed and delay control
- Indicator markings on the switch
Quick facts
- Part: Standard Ignition WP-514 windshield wiper switch
- Fits: 2009 Mazda 5
- Condition: New
A wiper that skips a speed or delay setting, wipers that will not turn on or off, or a washer that does not spray can all point to a worn switch. A blown fuse, the wiper motor or a loose connector can produce these symptoms too, so with the ignition off, look at the wiper fuse for a break before replacing the switch.
Fits
This switch is a direct-fit replacement for the 2009 Mazda 5. This listing is one switch, and the 2009 Mazda 5 takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Terminals: 11 blade terminals
- Connector: female, 1 cavity
- Wiper speed settings: 3
- Wiper delay settings: 4
Build and materials
- Condition: New
- Conductors: copper alloy
- Color: black
- Country of origin: Japan
Interchange: WW814 · SW8436 · WS6769 · BAT266128
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
WW814, SW8436, WS6769, BAT266128, WP-514
Frequently Asked Questions
Is the Standard Ignition WP-514 the right wiper switch for the 2009 Mazda 5?
Yes. Standard Ignition WP-514 is a direct-fit windshield wiper switch for the 2009 Mazda 5, and that car takes one.
How many speeds and delay settings does this windshield wiper switch have?
This switch has three wiper speed settings and four delay settings, plus control of the windshield washer spray.
Does the WP-514 switch also control the rear window wiper and washer?
Yes. Standard Ignition WP-514 includes rear window wiper speed and delay control, and it handles both the windshield and rear window washer sprays.
Can a worn wiper switch be why the washer stops spraying?
Yes, it can. A switch that no longer sends the spray signal can leave the washer dry, and a missing wiper speed or a delay that does nothing can also point to the switch.
Does the Standard Ignition WP-514 replace SW8436?
Yes. SW8436 is an interchange number for this switch, along with WW814, WS6769 and BAT266128.
