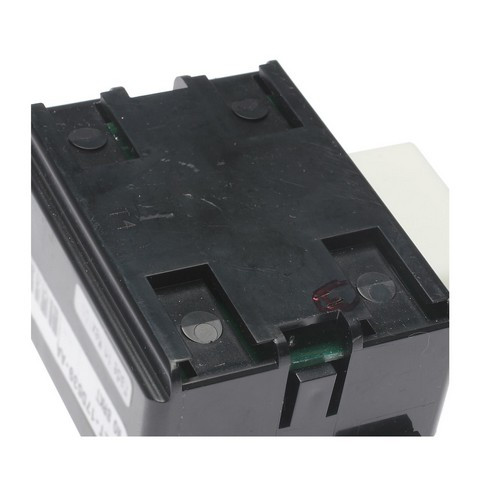

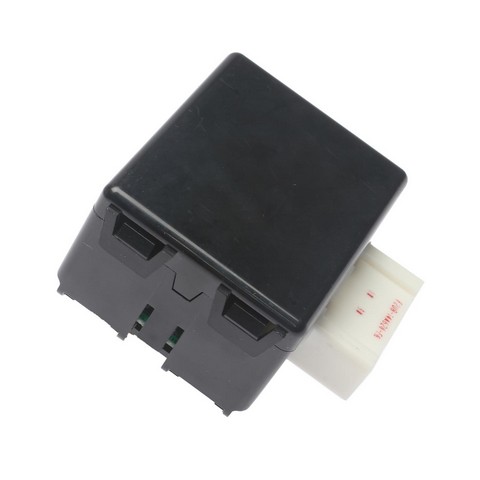

Standard Ignition RY-1541 wiper motor pulse board module for the 1992-2005 Ford F-150 and other vehicles switches the wiper circuit for pulse wiper operation.
- Standard Ignition relays have composite housings that protect against harsh temperatures and demanding under-hood conditions
- Brass or copper contacts where specified, for extended wear resistance
- 14 male pin terminals, with a female connector gender
- 12 V relay-based module for the wiper circuit
Quick facts
- Part: Standard Ignition RY-1541 wiper motor pulse board module
- Fits: 1992-2005 Ford F-150 and other vehicles
- Condition: New
Wipers that skip the intermittent setting, sweep without pausing or do not run at all can mean the module has failed. These signs alone do not prove this module is the problem, because a worn wiper motor is another common source.
Fits
The vehicles it fits include the 1992-2005 Ford F-150, the 1992-1999 Ford F-250 and the 1994-1998 Ford Mustang. If your Ford is not named here, look up its year and model in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Terminal quantity: 14
- Terminal type: pin, male
- Connector gender: female
- Voltage: 12 V
Build and materials
- Contents: relay
- Function: wiper
- Mounting bracket: not included
- Condition: New
- Country of origin: Taiwan
In the box
One wiper motor pulse board module with its relay. Each vehicle takes one, and a mounting bracket is not included.
Interchange: R7046 · 20830 · AR7047 · F39Z17C476A · F4TZ17C476CA · SW2521 · SW5162 · SW5630 · SW7665 · YC2Z17C476A · YC2Z17C476AA
This part cross-references / interchanges with the following part numbers:
R7046, 20830, AR7047, F39Z17C476A, F4TZ17C476CA, SW2521, SW5162, SW5630, SW7665, YC2Z17C476A, YC2Z17C476AA
Frequently Asked Questions
Does the Standard Ignition RY-1541 fit a 1994-1998 Ford Mustang?
Yes. Standard Ignition RY-1541 fits the 1994-1998 Ford Mustang. Find any other Ford in the "Vehicles it fits" section.
Does this wiper motor pulse board module come with a mounting bracket?
No. This listing is one module with its relay, and the mounting bracket is not included. Each vehicle takes one module.
How many pins does the Standard Ignition RY-1541 have?
Standard Ignition RY-1541 has 14 male pin terminals and a female connector gender. It is a 12 V module.
What are the signs of a failing wiper pulse module?
Wipers that skip the intermittent setting, do not pause between sweeps or do not run at all can mean the module has failed. A shop can test it.
Does Standard Ignition RY-1541 replace number F4TZ17C476CA?
Yes. F4TZ17C476CA is one of the other numbers this module replaces. The Interchange line also gives YC2Z17C476A, SW5630 and more.
