MOOG ES801722 front left outer tie rod end for the 2005-2022 Ford F-250 Super Duty and other vehicles links the steering linkage to the steering knuckle. This MOOG tie rod end, also called a steering tie rod end, carries steering input to the wheel and pivots on a ball stud as the suspension moves.

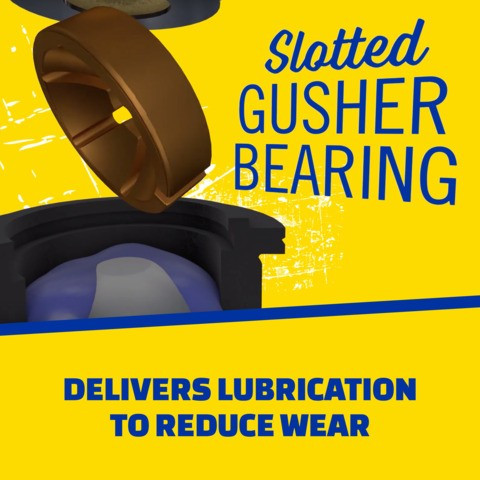

- PROBLEM SOLVER gusher bearing with a metal-to-metal design that lets grease flow through the bearing surface
- Heat-treated ball studs to inhibit premature failure and improve fatigue strength
- Greaseable socket that lets new lubricant flush out contaminants, reducing corrosion and wear
- Belleville preload washer that helps keep the bearing package tight as the bearings wear
- Precision tolerances for installation and steering alignment
Quick facts
- Part: MOOG ES801722 tie rod end
- Also called: steering tie rod end
- Fits: 2005-2022 Ford F-250 Super Duty and other vehicles
- Position: Front left outer
- Condition: New
A worn tie rod end can show up as loose or wandering steering, a knock over bumps or uneven front tire wear. These signs alone do not prove this part is the problem, since a worn ball joint can produce similar ones. This listing is one tie rod end for the front left outer position, because each side of the axle takes its own, and both sides are normally replaced together.
Fits
This MOOG outer tie rod end is a direct-fit replacement for the 2005-2022 Ford F-250 Super Duty, the 2005-2022 Ford F-350 Super Duty and the 2005-2010 Ford F-450 Super Duty.
Specifications
Fit and size
- Position: Front left outer
- Quantity per application: 1
Build and materials
- Ball studs: heat treated
- Socket: greaseable
- Condition: New
- Country of origin: United States
Interchange: 544-534
TA5580 · 5C3Z3A131HA · 7C3Z3A131H · AC3Z3A131H · BC3Z3A131F · HC3Z3A131D · GS40622 · MS40622 · TXMS40622 · JTE1284
This part cross-references / interchanges with the following part numbers:
TA5580, 544-534, 5C3Z3A131HA, 7C3Z3A131H, AC3Z3A131H, BC3Z3A131F, HC3Z3A131D, GS40622, MS40622, TXMS40622, JTE1284
Frequently Asked Questions
Does the MOOG ES801722 fit the 2005-2022 Ford F-350 Super Duty?
Yes, MOOG ES801722 fits the 2005-2022 Ford F-350 Super Duty. If your truck is a different model or year, look it up in the "Vehicles it fits" section on this page.
Is this MOOG outer tie rod a left or right side part?
This MOOG ES801722 is for the front left outer position. The right side is a separate part and is ordered on its own.
Do MOOG Problem Solver tie rod ends like this one have a greaseable socket?
Yes. The ES801722 has a greaseable socket so new grease can flush out contaminants, plus a Problem Solver gusher bearing that lets grease reach the bearing surface.
What does the Belleville washer in this tie rod end do?
The Belleville preload washer helps keep the bearing package tight as the bearings wear.
Is this MOOG tie rod a replacement for number 5C3Z3A131HA?
Yes. 5C3Z3A131HA is one of the other-brand and OE numbers this MOOG ES801722 replaces. The rest are on the Interchange line.
