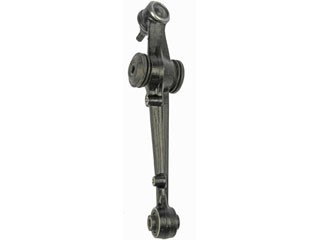

Dorman 520-592 rear right lower control arm with ball joint for the 1991-1995 Acura Legend connects the rear right wheel to the vehicle and lets it move with the road. This Dorman control arm replaces the arm, ball joint and bushings as one assembly.
- Dorman OE Solutions line
- Pre-installed ball joint and bushings save time and labor
- Pre-greased ball joint with a threaded stud, 14 mm thread diameter
- Additional coatings for rust and corrosion resistance
- Evaluation process aimed at a smooth ride, directional stability and predictable dynamics
Quick facts
- Part: Dorman 520-592 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 1991-1995 Acura Legend
- Position: Rear right lower
- Material: Steel
- Condition: New
A clunk over bumps, uneven tire wear or a car that wanders can mean a worn Dorman suspension control arm or ball joint, but other suspension parts can cause similar signs. A shop can inspect the arm's bushings and ball joint to pin down the cause before you replace it.
Fits
This Dorman lower control arm directly replaces the original assembly on the 1991-1995 Acura Legend.
Specifications
Fit and size
- Position: rear right lower
- Quantity per vehicle: 1 for this side
- Mounting hole diameter: 12.3 mm
- Maximum width: 288.5 mm
- Maximum length: 237 mm
- Ball joint thread diameter: 14 mm
Build and materials
- Control arm type: Casting/Forged
- Control arm material: steel
- Bushing material: rubber
- Ball joint stud type: threaded
- Adjustable: no
- Grade: standard replacement
- Condition: new
- Country of origin: Taiwan
In the box
One control arm with ball joint and mounting hardware; no grease fitting is included. This listing is one arm for the rear right, and that side takes one. The rear left is a separate part ordered separately, and the two are normally replaced together.
Interchange: TC6685 · CA2010 · 52350SP0003 · 52350SP0J01 · 2CB60020 · RK9929 · FA4031 · GK9929 · CMK9929 · 2605099
This part cross-references / interchanges with the following part numbers:
TC6685, CA2010, 52350SP0003, 52350SP0J01, 2CB60020, RK9929, FA4031, GK9929, CMK9929, 2605099
Frequently Asked Questions
Is the Dorman 520-592 rear right lower control arm right for the 1991-1995 Acura Legend?
Yes. Dorman 520-592 is a rear right lower control arm that fits the 1991-1995 Acura Legend. The rear left side is a separate part.
Does the Dorman suspension control arm and ball joint assembly come with the ball joint installed?
Yes. This Dorman 520-592 assembly has the ball joint and bushings pre-installed, and the ball joint comes pre-greased.
What are the Dorman control arm bushings made of?
The bushings are rubber, and they come installed on the steel arm.
What size is the ball joint stud on this control arm?
The ball joint has a threaded stud with a 14 mm thread diameter. The arm's mounting hole diameter is 12.3 mm.
Does this control arm come with a grease fitting?
No. The ball joint comes pre-greased and mounting hardware is included, but a grease fitting is not.
