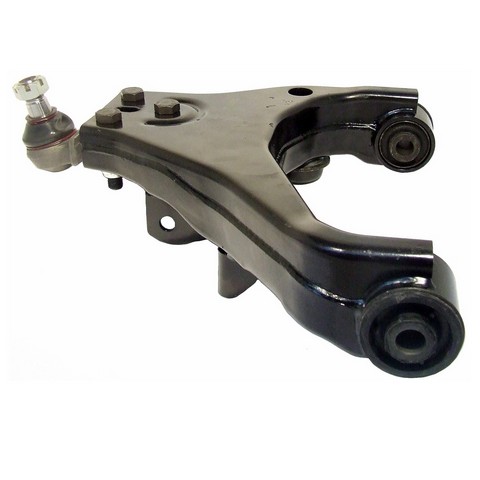

Delphi TC1747 front left lower control arm with ball joint for the 2003-2009 Kia Sorento connects the wheel to the chassis and pivots on its ball joint as the suspension moves. Sold as a control arm and ball joint assembly, it replaces the arm and the joint as one piece.
- 100% crack detection and ultrasonic flaw detection on the control arm
- Ball studs machined to micron tolerances for smooth joint operation
- Robot-welded control arm for consistent quality
- Anti-corrosion protection applied to each part
- Delphi steering parts are tested below -40 degrees C and above 120 degrees C, with 720 hours of salt spray exposure
Quick facts
- Part: Delphi TC1747 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2003-2009 Kia Sorento
- Position: Front left lower
- Condition: New
A clunk over bumps, uneven front tire wear or loose steering can mean a worn control arm or ball joint. These signs alone do not prove this arm is at fault, since a worn strut or tie rod end can cause some of them.
Fits
This arm fits the 2003-2009 Kia Sorento. This listing is one arm for the front left; the front right side of that axle is a separate part, and both sides are normally replaced at the same time.
Specifications
Fit and size
- Position: Front left lower
- Quantity per vehicle: 1 (front left)
- Pieces per listing: 1
Build and materials
- Type: control arm with ball joint
- Corrosion protection: anti-corrosion protection on each part
- Condition: New
In the box
One control arm with ball joint for the front left side. The 2003-2009 Kia Sorento takes one on that side, and the front right is ordered separately.
Interchange: 101-5460 · 102-5460 · 102-5462 · KI-H203 · 54510-3E001 · 54510-3E003 · 54510-3E100 · 54510-3E150
KSC5162 · 545103E000 · 545103E002 · CB63133 · CB63133PR · K620516 · RK620516 · RK622720 · CMS90104 · CMS90105 · GS90104
This part cross-references / interchanges with the following part numbers:
101-5460, 102-5460, 102-5462, KI-H203, KSC5162, 545103E000, 54510-3E001, 545103E002, 54510-3E003, 54510-3E100, 54510-3E150, CB63133, CB63133PR, K620516, RK620516, RK622720, CMS90104, CMS90105, GS90104
Frequently Asked Questions
Does the Delphi TC1747 control arm fit the 2003-2009 Kia Sorento?
Yes. Delphi TC1747 is a front left lower control arm with ball joint for the 2003-2009 Kia Sorento.
Is the TC1747 a left or a right control arm?
It is the front left lower arm, sold one per listing. The front right arm is a separate part and is ordered on its own.
Does this lower control arm have corrosion protection?
Yes. Anti-corrosion protection is applied to each Delphi TC1747 arm, and Delphi steering parts are exposed to 720 hours of salt spray in testing.
What are signs the ball joint on this control arm is worn?
A clunk over bumps, uneven tire wear or vague steering can show wear in the joint. A shop can test the joint, since checking it needs the vehicle raised.
Is 54510-3E001 interchangeable with Delphi TC1747?
Yes. 54510-3E001 is listed as an interchange number for the Delphi TC1747 control arm with ball joint.
