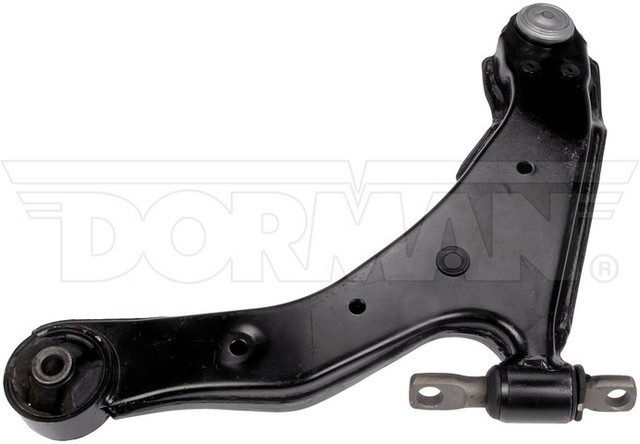

Dorman 521-754 front right lower control arm with ball joint for the 2007-2008 Hyundai Tiburon locates the wheel as the suspension moves. This Dorman control arm is built as a control arm and ball joint assembly, and it directly replaces the original assembly.
- Ball joint and bushings come pre-installed on the arm, saving time and labor
- Dorman OE Solutions control arm in boxed steel construction with rubber bushings
- Pre-greased ball joint with a threaded stud
- Additional coatings add rust and corrosion resistance
- Testing process aimed at a smooth ride and directional stability
Quick facts
- Part: Dorman 521-754 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2007-2008 Hyundai Tiburon
- Position: Front right lower
- Material: Steel control arm, rubber bushings
- Condition: New
A worn lower control arm can show up as a clunk over bumps, loose steering or uneven front tire wear. Before you replace the arm, rule out worn sway bar links, struts and tire problems, which can show similar clunks or uneven wear. Most shops replace the left and right arms as a pair; this listing is one arm, for the front right, and the front left is ordered separately.
Fits
It is a direct-fit control arm for the 2007-2008 Hyundai Tiburon, which takes one on the front right side.
Specifications
Fit and size
- Position: Front right lower
- Quantity: 1 for the front right side
- Mounting hole diameter: 12.3 mm
- Ball joint thread diameter: 14 mm
- Maximum width: 288.5 mm
- Maximum length: 237 mm
Build and materials
- Type: Boxed control arm with ball joint, standard replacement grade
- Control arm material: Steel
- Bushing material: Rubber
- Ball joint: Installed, pre-greased, threaded stud
- Condition: New
- Country of origin: China
In the box
One control arm with its ball joint and mounting hardware. No grease fitting is included.
Interchange: 102-6655
TC5735 · CA12520 · 545012C607 · 5CB90136 · RK620519 · RK621579 · CMS901020 · 2606444 · SRK620519
This part cross-references / interchanges with the following part numbers:
102-6655, TC5735, CA12520, 545012C607, 5CB90136, RK620519, RK621579, CMS901020, 2606444, SRK620519
Frequently Asked Questions
Is this the front right control arm for the 2007-2008 Hyundai Tiburon?
Yes. Dorman 521-754 is the front right lower control arm with ball joint for the 2007-2008 Hyundai Tiburon, and the car takes one on that side.
Are the Dorman control arm bushings already installed?
Yes. Dorman 521-754 comes with its ball joint and rubber bushings pre-installed on the arm.
Does the Dorman lower control arm have a grease fitting?
No. The ball joint on this lower control arm is pre-greased, and no grease fitting is included.
How can I tell if the ball joint on a front lower control arm is worn?
A clunk over bumps, loose steering or uneven front tire wear can mean a worn ball joint or bushing. A shop can check ball joint play safely.
What thread size is the ball joint stud on this control arm?
The ball joint thread diameter is 14 mm. The mounting hole on this arm is 12.3 mm across.
