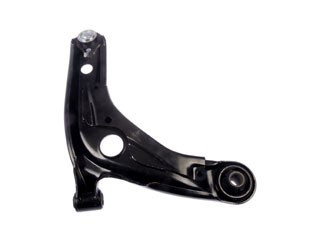

Dorman 521-105 front left lower control arm with ball joint for the 2012-2021 Toyota Prius c and other vehicles connects the front left wheel to the chassis and lets it move with the suspension.
- Part of the Dorman OE Solutions line
- Tested for a smooth ride, directional stability and predictable dynamics
- Ball joint and bushings come pre-installed, which saves time and labor
- Additional coatings for rust and corrosion resistance
- Pre-greased ball joint with a threaded stud
Quick facts
- Part: Dorman 521-105 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2012-2021 Toyota Prius c and other vehicles
- Position: Front left lower
- Material: Steel
- Condition: New
Clunks over bumps, loose steering or uneven front tire wear can mean this arm, its ball joint or its bushings are worn, though a worn tie rod end or strut mount can be behind them too. Each car takes one on each side of the front axle, and the pair is normally replaced together; this listing is the front left only, and the front right is a separate part.
Fits
It fits the 2012-2021 Toyota Prius c, the 2006-2019 Toyota Yaris and the 2008-2014 Scion xD. This Dorman suspension control arm and ball joint assembly is a direct replacement for the original equipment on these vehicles.
Specifications
Fit and size
- Position: Front left lower
- Quantity per vehicle: 1 per side
- Mounting hole diameter: 12.3 mm
- Mounting hole quantity: 1
- Maximum width: 288.5 mm
- Maximum length: 237 mm
- Ball joint thread diameter: 14 mm
Build and materials
- Type: Casting/forged control arm
- Control arm material: Steel
- Bushing material: Rubber
- Ball joint stud: Threaded, pre-greased, no grease fitting
- Grade: Standard replacement
- Condition: New
- Country of origin: Taiwan
In the box
One control arm with the ball joint and bushings installed. Mounting hardware is included.
Interchange: 102-5766 · 810-256918B · 623.44054
TC2463 · CA14400 · 4CB80065 · RK620572 · GS86138 · CMS86138 · 2605959 · SK521105 · 1525021 · X50CJ4073 · JTC7654 · 4806909140 · 4806959095 · 4806959125 · 4806959135
This part cross-references / interchanges with the following part numbers:
102-5766, 810-256918B, 623.44054, TC2463, CA14400, 4CB80065, RK620572, GS86138, CMS86138, 2605959, SK521105, 1525021, X50CJ4073, JTC7654, 4806909140, 4806959095, 4806959125, 4806959135
Frequently Asked Questions
Is the Dorman control arm 521-105 the right one for a 2012-2021 Toyota Prius c?
Yes. Dorman 521-105 is a front left lower control arm with ball joint for the 2012-2021 Toyota Prius c. The right side is a separate part.
Is this Dorman lower control arm the one for the 2006-2019 Toyota Yaris?
Yes. Dorman 521-105 fits the 2006-2019 Toyota Yaris in the front left lower position.
Do the Dorman control arm bushings come pre-installed?
Yes. This control arm arrives with the ball joint and rubber bushings already installed, and mounting hardware is included.
Is this Dorman suspension control arm made of steel?
Yes. Dorman 521-105 has a steel control arm with rubber bushings, and additional coatings give it rust and corrosion resistance.
Is the ball joint on this control arm pre-greased?
Yes, the ball joint is pre-greased and installed on the arm. The assembly has no grease fitting, and the ball joint stud is threaded with a 14 mm thread diameter.
