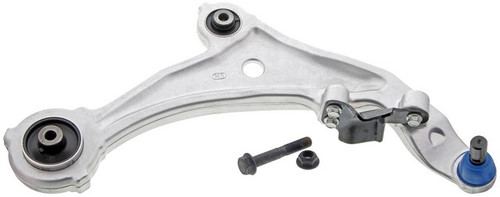

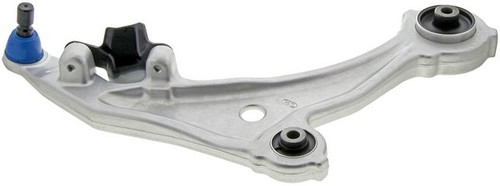

Mevotech Supreme CMS301005 front right lower control arm with ball joint for the 2009-2014 Nissan Maxima joins the wheel to the car and lets it pivot as the suspension moves. This Mevotech Supreme control arm, also sold as a control arm and ball joint assembly, has an aluminum arm, rubber bushings and a ball joint with a neoprene dust boot.
- Mevotech Supreme line, engineered in-house with application-specific upgrades
- Patented sintered bearings; BiMetallic technology for high heat and high load in tight spaces
- Additional surface treatment on the ball joint that prevents rust build-up
- Bushings with a solid cross section for increased stiffness and durability
- Pre-applied nylok thread adhesive keeps fasteners secure and vibration resistant
Quick facts
- Part: Mevotech Supreme CMS301005 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2009-2014 Nissan Maxima
- Position: Front right lower
- Material: Aluminum
- Condition: New
Clunking over bumps, loose steering or uneven tire wear can mean the ball joint or control arm is worn, though a worn sway bar link or tie rod end can be behind them too. Front arms are normally replaced as a pair: this listing is the front right arm, one per side of the axle, and the front left is a separate part.
Fits
This is a Nissan Maxima control arm for the 2009-2014 model years, in the front right lower position.
Specifications
Fit and size
- Position: Front right lower
- Quantity per application: 1
- Maximum width: 16.55 in
- Maximum length: 17.35 in
Build and materials
- Control arm material: Aluminum
- Bushing material: Rubber
- Ball joint stud type: Grooved
- Dust boot material: Neoprene
- Condition: New
- Country of origin: China
In the box
One control arm with ball joint, bushings and dust boot, plus a 90 degree SAE grease fitting, an application-specific pinch bolt and a locking nut.
Installation notes
- Comes pre-greased.
- Labor Saver design for faster, easier installation.
Interchange: 101-7469 · 102-7469 · 810-321914B · 622.42009 · 521-724
19310385 · TC5740 · CB69104 · CB69104PR · CA14643 · RK622054 · 2606675 · 545009N00A · 545009N00B · 30030868 · X36CJ7793 · JTC2899 · TK622054
This part cross-references / interchanges with the following part numbers:
19310385, 101-7469, 102-7469, 810-321914B, 622.42009, TC5740, 521-724, CB69104, CB69104PR, CA14643, RK622054, CMS301005, 2606675, 545009N00A, 545009N00B, 30030868, X36CJ7793, JTC2899, TK622054
Frequently Asked Questions
Which side is this Nissan Maxima lower control arm for the 2009-2014 model years?
Mevotech Supreme CMS301005 is the front right lower control arm for the 2009-2014 Nissan Maxima. The front left is a separate part.
Does this 2011 Nissan Maxima lower control arm include the ball joint?
Yes. The ball joint, rubber bushings and a neoprene dust boot are included, and this front right lower arm fits the 2009-2014 Nissan Maxima, 2011 included.
What are the bushings and dust boot made of on the Mevotech Supreme CMS301005?
The bushings are rubber with a solid cross section for increased stiffness, and the ball joint dust boot is neoprene. The arm itself is aluminum.
Does the CMS301005 come with a pinch bolt and locking nut?
Yes. Mevotech Supreme CMS301005 includes an application-specific pinch bolt, a locking nut and a 90 degree SAE grease fitting.
Is the Mevotech Supreme suspension control arm pre-greased?
Yes. It comes pre-greased, and the included 90 degree SAE grease fitting is there for later servicing.
