Front Upper Control Arm with Ball Joint for 2005-2010 Dodge Dakota & More - Mevotech TTX CTXMS25141

$122.99

Vehicles this part fits

    Part number: CTXMS25141
    UPC: 677319198942
    Condition: New
    Weight: 6.89 LBS
    Item Package Quantity: 1
    $122.99
    Adding to cart… The item has been added

    Have questions?

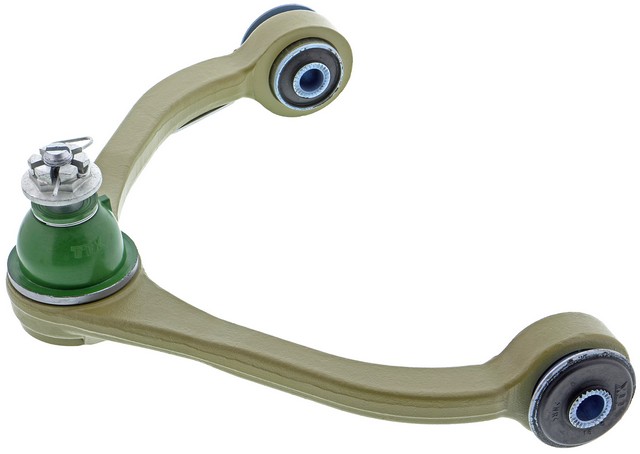

    Mevotech TTX Suspension Control Arm and Ball Joint Assembly P/N:CTXMS25141
    Mevotech TTX Suspension Control Arm and Ball Joint Assembly P/N:CTXMS25141
    $122.99
    $122.99

    Mevotech TTX CTXMS25141 front upper control arm with ball joint for the 2005-2010 Dodge Dakota and other vehicles connects the wheel to the frame. Sold as a control arm and ball joint assembly, it includes rubber bushings and a threaded ball stud.

    • Mevotech TTX line for high-usage commercial and passenger vehicles, SUVs, fleets and working trucks
    • Patented sintered bearings
    • Patented sealing ring that locks the boot onto the ball joint housing
    • Forged steel control arm with a thicker cross section
    • Rubber bushings with knurling that secures the control arm bushing to the sub-frame
    • Repel-TEK surface treatment against rust build-up

    Quick facts

    • Part: Mevotech TTX CTXMS25141 control arm with ball joint
    • Also called: control arm and ball joint assembly
    • Fits: 2005-2010 Dodge Dakota and other vehicles
    • Position: Front upper
    • Material: Steel
    • Condition: New

    Clunking over bumps, loose steering or uneven tire wear can mean the arm or its ball joint is worn. Those signs can have other causes, so before replacing it, look for the actual cause with the engine off: a torn ball joint boot, leaking grease or cracked rubber bushings.

    Fits

    This front upper control arm with ball joint fits the 2005-2010 Dodge Dakota, the 2011 Ram Dakota and the 2006-2009 Mitsubishi Raider; a vehicle takes two. This listing is one piece, and both sides are normally replaced together.

    Specifications

    Fit and size

    • Position: front upper
    • Quantity per vehicle: 2
    • Ball joint mounting type: press in
    • Ball joint stud type: threaded
    • Control arm maximum width: 14.5 in
    • Control arm maximum length: 10.0 in

    Build and materials

    • Control arm material: steel
    • Bushing material: rubber
    • Bearing material: sintered metal
    • Greaseable: yes, pre-greased
    • Condition: new
    • Country of origin: China

    In the box

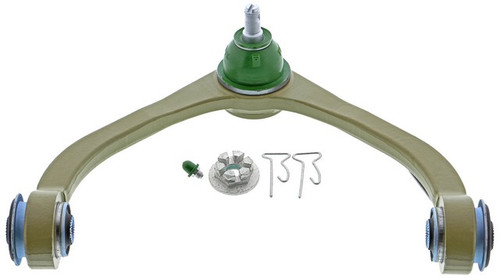

    One control arm with ball joint, with its rubber bushings and mounting hardware.

    Installation notes

    • A part-specific slotted castle nut and an easy-snap cotter pin are provided to secure the ball joint to the vehicle.
    • A 180 degree SAE grease fitting is included for servicing.
    • Fasteners come with pre-applied nylok thread adhesive.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is this the right control arm for a 2005-2010 Dodge Dakota?

    Yes. Mevotech TTX CTXMS25141 is a front upper control arm with ball joint for the 2005-2010 Dodge Dakota. The 2011 Ram Dakota also takes it.

    What hardware comes with this Mevotech TTX control arm?

    Mevotech TTX CTXMS25141 comes with mounting hardware, rubber bushings, a slotted castle nut, a snap cotter pin and a 180 degree SAE grease fitting.

    Is this front upper control arm greaseable?

    Yes. The ball joint comes pre-greased, and the included 180 degree SAE grease fitting lets you add grease during later service.

    How can I tell if the ball joint on this arm is worn?

    Clunking over bumps, loose steering or uneven tire wear can mean wear, and a shop can test ball joint play. Have suspected wear checked promptly.

    What is special about the ball stud on this control arm?

    It is an application-specific ball stud system with a larger sphere, and the stud type is threaded. The ball joint mounting type is press in.
