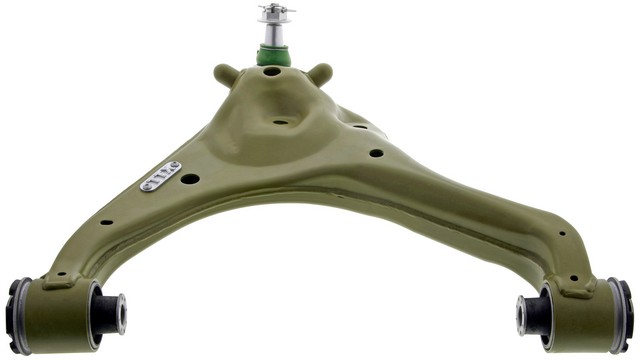

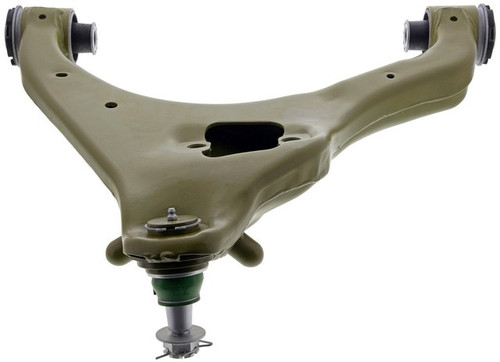

Mevotech TTX CTXMS401296 front right lower control arm with ball joint for the 2021-2025 Ford F-150 links the wheel to the frame and lets the suspension move. The Mevotech TTX suspension control arm and ball joint assembly is built for high-usage commercial and passenger vehicles, SUVs, fleets and working trucks.
- Mevotech TTX line with Labor Saver™ designs, tools and hardware for faster, easier installation
- Additional ball joint pre-assembled on the arm to save installation time
- Stamped steel control arm with a reinforced ball joint head for added durability
- Bushings with double bonding and added knurling for increased stiffness and durability
- Patented sintered bearings for longer-lasting performance
- Neoprene boot built into the ball joint assembly to seal out corrosion
Quick facts
- Part: Mevotech TTX CTXMS401296 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2021-2025 Ford F-150
- Position: Front right lower
- Material: Steel
- Condition: New
A clunk from the front suspension, uneven tire wear or a torn ball joint boot can mean this arm or its ball joint is worn. Before you replace it, rule out other worn front suspension parts such as tie rod ends or sway bar links, which can make similar noises. The front right lower position takes one arm; this listing is that arm, the front left is ordered separately, and the two are normally replaced together.
Fits
It is a direct-fit replacement for the 2021-2025 Ford F-150 suspension control arm on the front right lower side.
Specifications
Fit and size
- Position: Front right lower
- Quantity per application: 1
- Maximum width: 20.31 in
- Maximum length: 14.8 in
- Ball joint mounting type: Press in
- Ball joint stud type: Threaded
- Adjustable: No
Build and materials
- Control arm material: Steel
- Bushing material: Rubber
- Bearing material: Sintered metal
- Dust boot material: Neoprene
- Condition: New
- Country of origin: China
In the box
One control arm with ball joint, bushings, dust boot, castle nut, cotter pin and grease fitting.
Installation notes
- Ball joint comes pre-assembled and pre-greased.
- Secure the ball joint to the vehicle with the part-specific slotted castle nut and snap cotter pin provided.
- The 180 degree SAE grease fitting is included for servicing.
Interchange: 19531510 · ML3Z3078E
This part cross-references / interchanges with the following part numbers:
19531510, ML3Z3078E, CTXMS401296
Frequently Asked Questions
Is the 2021-2025 Ford F-150 control arm CTXMS401296 for the front right lower side?
Yes. Mevotech TTX CTXMS401296 is the front right lower arm for the 2021-2025 Ford F-150. The front left side is a separate part.
Does this Mevotech TTX control arm come with the ball joint and hardware?
Yes. Mevotech TTX CTXMS401296 includes the ball joint, bushings, dust boot, slotted castle nut, cotter pin and grease fitting.
What are the bushings and bearings made of on this Mevotech TTX lower control arm?
The bushings are rubber, with double bonding and added knurling. The ball joint uses sintered metal bearings, and the arm itself is steel.
How can I tell if a front lower control arm and its ball joint are worn?
Watch for clunks from the front suspension or uneven tire wear while driving. A shop can inspect the boot and bushings and test ball joint play.
Does CTXMS401296 interchange with ML3Z3078E?
Yes. ML3Z3078E and 19531510 are listed interchange numbers for this control arm.
