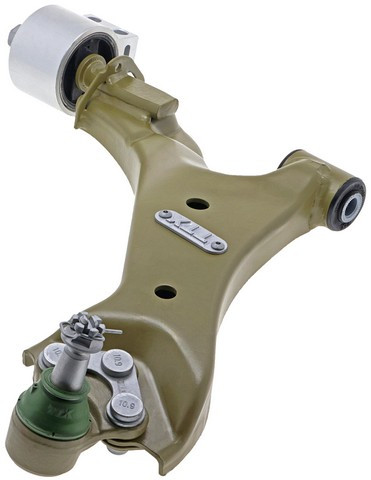

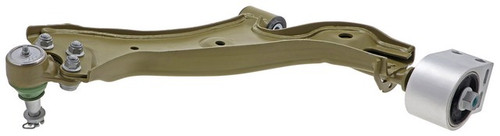

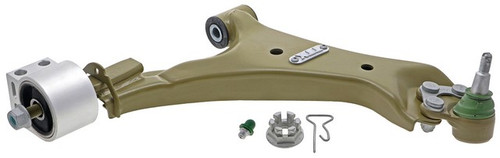

Help keep steering tight and controlled on the front-right corner with the Mevotech TTX control arm and ball joint assembly (P/N CTXMS501118). This front right lower unit drops in as a direct-fit replacement for the 2010-2017 Chevrolet Equinox and the 2010-2017 GMC Terrain, combining the lower control arm, integrated ball joint, and bushings in one assembly that locates the wheel and helps carry suspension loads. If a worn arm or ball joint is behind clunking, loose steering, or uneven tire wear, this replaces those components in one step.
- Maximum toughness: patented sintered bearings for longer-lasting performance in the ball joint.
- Locks out contaminants: a patented sealing ring permanently locks the boot onto the ball joint housing for a superior seal.
- High-performance design: upgraded rubber bushings with knurling secure the bushing to the sub-frame, plus an application-specific ball stud with a larger sphere.

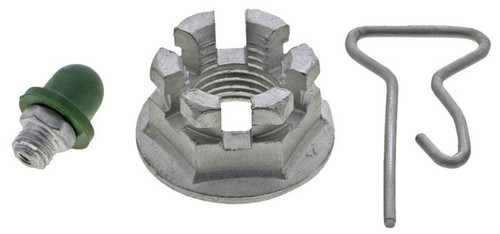

- Built to install fast: part-specific slotted castle nut, snap cotter pin, and a 180-degree SAE grease fitting are included, with pre-applied nylok thread adhesive to keep fasteners secure.
Stamped steel construction is designed to match or surpass OE specifications, and Repel-TEK surface treatment helps prevent rust build-up. A great Mevotech TTX lower control arm choice for a 2010-2017 Chevrolet Equinox control arm or 2010-2017 GMC Terrain control arm job.
Interchange: 810-425988B · 622.66041 · 524-158
810425988B · 62266041 · 524158 · 19390898 · 20945780 · TC5718 · CB90054 · CB90054PR · CA16346 · GCA16346 · 25872722 · RK623488 · RK623582 · SK524158 · X07CJ1177 · CP5154
This part cross-references / interchanges with the following part numbers:
19390898, 810-425988B, 622.66041, 20945780, TC5718, 524-158, CB90054, CB90054PR, CA16346, GCA16346, 25872722, RK623488, RK623582, CTXMS501118, SK524158, X07CJ1177, CP5154
Frequently Asked Questions
Does this control arm fit the 2010-2017 Chevrolet Equinox?
It is a direct-fit replacement for the 2010-2017 Chevrolet Equinox and the 2010-2017 GMC Terrain. See the "Vehicles it fits" section to confirm the engine and application for your vehicle.
What position is this control arm and ball joint assembly?
This is the front right lower control arm with an integrated ball joint. It combines the arm, ball joint, and bushings into a single assembly for that corner.
Is the ball joint hardware included?
Yes. Mevotech includes a part-specific slotted castle nut, a snap cotter pin, and a 180-degree SAE grease fitting, and applies nylok thread adhesive to help keep fasteners secure.
What signs suggest I need this control arm?
Clunking over the front suspension, loose or wandering steering, and uneven tire wear can indicate a worn arm, bushing, or ball joint. Diagnose the cause first, since other parts can produce similar symptoms.
How is the ball joint boot sealed?
A patented sealing ring permanently locks the boot onto the ball joint housing to help keep contaminants out, and the sintered bearings are built for longer-lasting performance.
