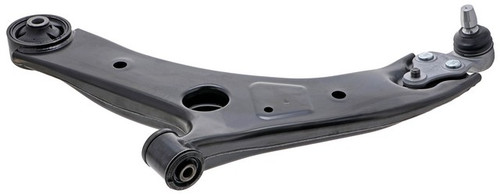

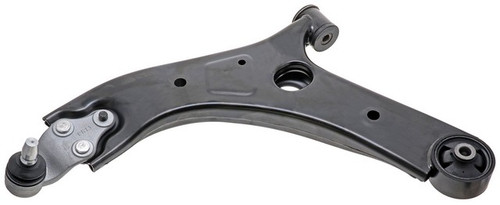

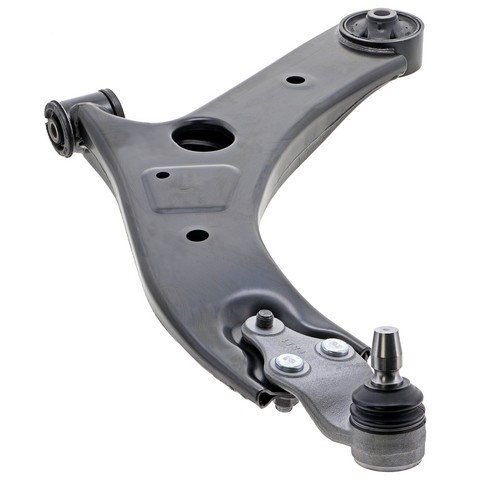

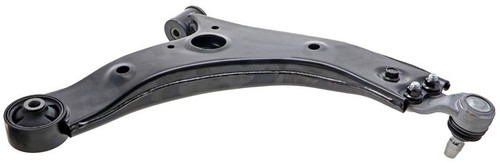

Mevotech Supreme CMS901249 front left lower control arm with ball joint for the 2015-2021 Kia Sedona connects the front left wheel to the vehicle through a ball joint and bushings. Sold as a control arm and ball joint assembly, this Mevotech Supreme control arm is built for high-usage commercial and passenger vehicles, SUVs, fleets and working trucks.
- Mevotech Supreme line, engineered in-house with application-specific upgrades
- Ball joint with a grooved stud and dust boot included
- Bushings included with the arm
- Protective surface treatment that resists rust and corrosion
- Durability tested in-house and by third parties
Quick facts
- Part: Mevotech Supreme CMS901249 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2015-2021 Kia Sedona
- Position: Front left lower
- Condition: New
A worn arm can show up as a clunk over bumps, uneven front tire wear or loose steering, though a worn strut, tie rod or wheel bearing can make similar noises or looseness. With the engine off, look for a torn dust boot, leaking grease or cracked bushing rubber, and have a shop check the joint for play before replacing it.
Fits
This 2015-2021 Kia Sedona control arm is a direct-fit replacement for the front left lower position. Front lower arms sit one on each side of the axle and are normally replaced as a pair; this listing is one arm for the front left, and the front right is a separate part.
Specifications
Fit and size
- Position: Front left lower
- Quantity per vehicle: 1 (this side)
- Control arm maximum length: 14.2 in
- Control arm maximum width: 17.7 in
- Ball joint mounting type: Bolt in
Build and materials
- Bushing material: Rubber
- Ball joint stud type: Grooved
- Surface: Protective treatment against rust and corrosion
- Condition: New
- Country of origin: Republic of Korea
In the box
One control arm with ball joint, bushings and dust boot.
Installation notes
- The ball joint comes pre-greased.
- Labor Saver designs, tools and hardware make installation faster and easier.
Interchange: 19474563 · 5CB90478 · 54500A9100 · RK623867 · GS901249 · 2608964
This part cross-references / interchanges with the following part numbers:
19474563, 5CB90478, 54500A9100, RK623867, GS901249, CMS901249, 2608964
Frequently Asked Questions
Which side of the 2015-2021 Kia Sedona does Mevotech Supreme CMS901249 go on?
Mevotech Supreme CMS901249 is made for the front left lower position of the 2015-2021 Kia Sedona. The front right uses a separate control arm that is sold on its own.
Does the Mevotech Supreme lower control arm come with bushings and a ball joint?
Yes. Mevotech Supreme CMS901249 includes the ball joint, the bushings and a dust boot, and the ball joint is pre-greased.
Does the Mevotech Supreme suspension control arm use a bolt-in ball joint?
Yes. This front left control arm has a bolt-in ball joint with a grooved stud.
What can a worn control arm with ball joint feel like while driving?
A clunk over bumps, uneven front tire wear or loose steering can go with a worn arm or ball joint. Worn struts or tie rods can feel similar.
Is 54500A9100 an interchange number for Mevotech Supreme CMS901249?
Yes. 54500A9100 is listed as an interchange number for Mevotech Supreme CMS901249.
