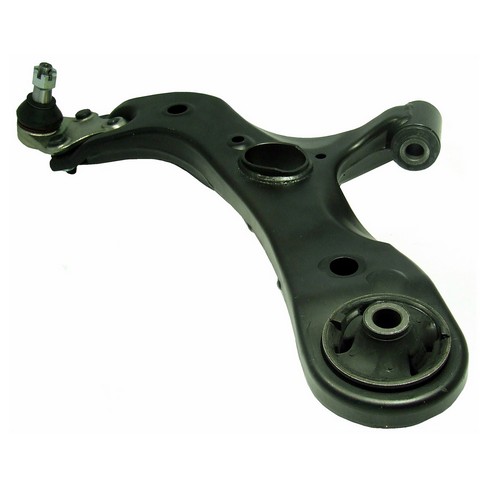

Delphi TC2282 front left lower control arm for the 2016-2020 Toyota Mirai and other vehicles links the front left wheel to the chassis and lets the suspension move. The Delphi control arm is sold as an assembly with its ball joint.
- Withstands temperatures below -40 degrees C and over 120 degrees C, and is exposed to 720 hours of salt spray
- 100% crack detection and ultrasonic flaw detection on the control arms
- Ball studs machined to micron tolerances for durability and smooth joint operation
- Robot welding for consistent performance and quality
- Anti-corrosion protection applied to each part
Quick facts
- Part: Delphi TC2282 control arm
- Also called: suspension control arm
- Fits: 2016-2020 Toyota Mirai and other vehicles
- Position: Front left lower
- Condition: New
A worn arm or ball joint can show up as a clunk over bumps, loose steering or uneven front tire wear. Those signs alone do not prove this arm is at fault, since a worn sway bar link can knock in a similar way. The front arms are normally replaced as a pair; this listing is one arm, for the left side.
Fits
It also fits the 2012-2018 Toyota Prius v and the 2017-2018 Toyota Corolla iM, among other vehicles. If your car is not named here, enter its year and model in the "Vehicles it fits" section to see whether this arm applies.
Specifications
Fit and size
- Position: front left lower
- Quantity for this side: 1
Build and materials
- Type: control arm and ball joint assembly
- Finish: anti-corrosion protection on each part
- Condition: new
In the box
One front left lower control arm with its ball joint. The front left side takes one; the front right is a separate part, ordered on its own.
Interchange: 102-7527 · 622.44846 · 52-1633 · 48069-0F030 · 48069-12300
KSC6045 · CB71023 · CB71023PR · CK641289 · K641289 · RK641289 · CMS861113 · MS10172 · JTC2233 · 4806902130
This part cross-references / interchanges with the following part numbers:
102-7527, 622.44846, 52-1633, KSC6045, CB71023, CB71023PR, CK641289, K641289, RK641289, CMS861113, MS10172, JTC2233, 4806902130, 48069-0F030, 48069-12300
Frequently Asked Questions
Is the Delphi TC2282 front left lower control arm right for the 2016-2020 Toyota Mirai?
Yes. The Delphi TC2282 fits the 2016-2020 Toyota Mirai on the front left lower position; the front right takes its own arm.
Does this control arm come with the ball joint already attached?
Yes. It is a control arm and ball joint assembly, supplied as one front left lower arm per listing.
How are the ball studs on the Delphi TC2282 made?
Delphi machines the ball studs to micron tolerances for durability and smooth joint operation. The arm itself is robot welded for consistent quality.
What can a worn suspension control arm or ball joint sound or feel like?
A clunk over bumps, loose or wandering steering and uneven front tire wear can all point to a worn arm or ball joint. A shop can inspect the suspension to confirm.
Does the Delphi TC2282 replace 48069-0F030?
Yes. 48069-0F030 is one of the numbers the Delphi TC2282 replaces, along with 48069-12300 and 4806902130. This one is the front left lower, so match the side.
