Front Left Upper Control Arm with Ball Joint for 1982-1983 Chevrolet Malibu & More - Dorman 520-137

$114.99

Vehicles this part fits

    Part number: 520-137
    UPC: 019495110170
    Condition: New
    Weight: 14.85 LBS
    Item Package Quantity: 1
    $114.99
    Adding to cart… The item has been added

    Have questions?

    Dorman - OE Solutions Suspension Control Arm and Ball Joint Assembly P/N:520-137
    Dorman - OE Solutions Suspension Control Arm and Ball Joint Assembly P/N:520-137
    $114.99
    $114.99

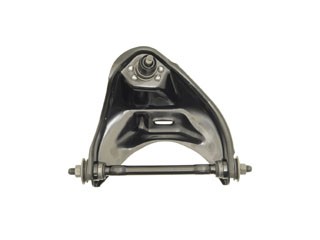

    Dorman 520-137 front left upper control arm with ball joint for the 1982-1983 Chevrolet Malibu and other vehicles links the left front wheel to the frame. This Dorman suspension control arm and ball joint assembly directly replaces the original on specific applications.

    • Part of the Dorman OE Solutions line
    • Ball joint and rubber bushings come pre-installed, which saves time and labor
    • Steel control arm, casting/forged type
    • Threaded ball joint stud with a 14 mm thread diameter, pre-greased
    • Additional coatings resist rust and corrosion
    • Evaluated and tested for a smooth, stable ride and directional stability

    Quick facts

    • Part: Dorman 520-137 control arm with ball joint
    • Also called: control arm and ball joint assembly
    • Fits: 1982-1983 Chevrolet Malibu and other vehicles
    • Position: Front left upper
    • Material: Steel control arm, rubber bushings
    • Condition: New

    A clunk over bumps, loose steering or uneven front tire wear can mean this control arm or its ball joint is worn, though a worn tie rod end or sway bar link can also be behind them. This listing is one arm; the 1982-1983 Chevrolet Malibu takes one on this side, the front right is a separate part, and both sides are normally replaced together.

    Fits

    This Dorman suspension control arm is listed for a wide range of Chevrolet, GMC, Buick, Oldsmobile, Pontiac and Isuzu models, including the 1995-2005 Chevrolet Blazer and the 1992-2004 GMC Jimmy. Driving something not named here? Look up your year and model in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Position: Front left upper
    • Quantity per vehicle: 1
    • Mounting hole diameter: 12.3 mm
    • Ball joint thread diameter: 14 mm
    • Maximum width: 288.5 mm
    • Maximum length: 237 mm

    Build and materials

    • Type: Control arm with ball joint, casting/forged
    • Control arm material: Steel
    • Bushing material: Rubber
    • Ball joint stud: Threaded, installed, pre-greased
    • Grade: Standard replacement
    • Adjustable: No
    • Condition: New
    • Country of origin: Taiwan

    In the box

    One control arm with the ball joint and bushings installed, plus mounting hardware. A grease fitting is not included.

    Interchange: 810-94986B · 623.66021 · 12543947-L
    TC5439 · CA12297 · 12376265 · 12543947 · 12546747 · 19133653 · 19416902 · 31022770 · CK620250 · CK620261 · RK620261 · FA4203 · GS50102 · CMS50102 · 2605330 · 8CB50056 · SRK620261 · X07CJ7152 · JTC1961

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    810-94986B, 623.66021, TC5439, CA12297, 12376265, 12543947, 12546747, 19133653, 19416902, 31022770, CK620250, CK620261, RK620261, FA4203, GS50102, CMS50102, 2605330, 8CB50056, SRK620261, 12543947-L, X07CJ7152, JTC1961

    Frequently Asked Questions

    Is this front left upper Chevy Malibu control arm right for a 1982-1983 model?

    Yes, Dorman 520-137 is the front left upper control arm for the 1982-1983 Chevrolet Malibu; the front right side is a separate part.

    Are the Dorman control arm bushings already installed?

    Yes, the ball joint and rubber bushings come pre-installed, and the ball joint is pre-greased. Mounting hardware is included; a grease fitting is not.

    What is this Dorman control arm made of?

    The control arm is steel, in a casting/forged type, with rubber bushings. Additional coatings give it rust and corrosion resistance.

    What thread size does the ball joint stud on Dorman 520-137 use?

    Dorman 520-137 has a threaded ball joint stud with a 14 mm thread diameter. The mounting hole measures 12.3 mm across.

    Is 12376265 an interchange number for Dorman 520-137?

    Yes, 12376265 is on the interchange list for Dorman 520-137, along with the other numbers printed at the bottom of this page.
