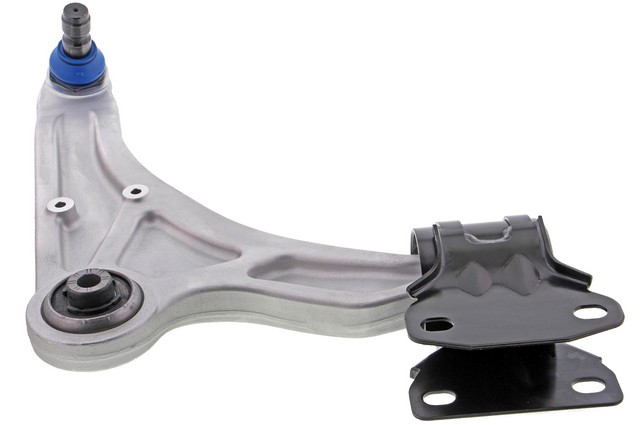

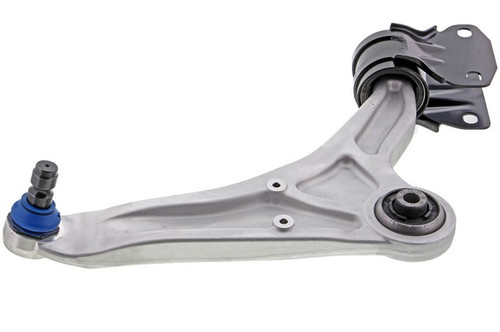

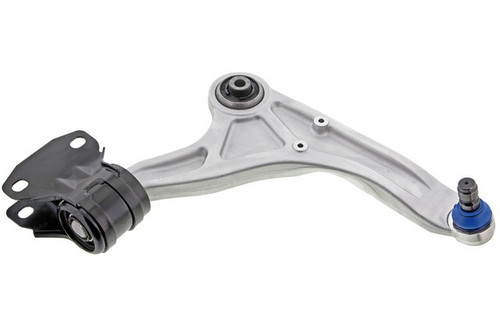

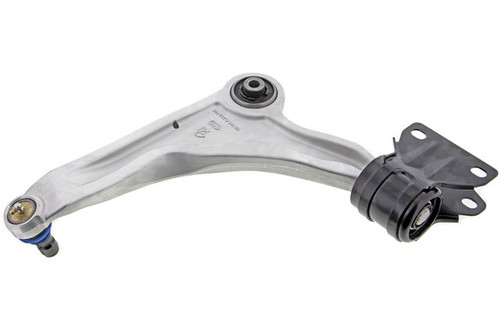

Mevotech Supreme CMS401184 front right lower control arm with ball joint for the 2013-2020 Ford Fusion and other vehicles links the wheel assembly to the chassis. This Mevotech Supreme suspension control arm comes as a unit with the ball joint, bushings and grease fitting already in place.
- Mevotech Supreme control arm engineered in-house with application-specific upgrades for durability and performance
- Patented BiMetallic technology with a greaseable sintered bearing for high heat and high load in tight spaces
- Forged aluminum control arm with a thicker cross section for added durability
- Ball joint with an additional surface treatment that prevents rust build-up
- Bushings with a solid cross section for increased stiffness and durability
- 90 degree SAE grease fitting included for servicing
Quick facts
- Part: Mevotech Supreme CMS401184 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2013-2020 Ford Fusion and other vehicles
- Position: Front right lower
- Material: Aluminum
- Condition: New
Clunking over bumps, steering that wanders or uneven front tire wear can mean the ball joint or bushings in this arm are worn, though a tired tie rod end or strut mount can be behind them too, so find the cause first. This listing is one arm for the front right; the front left is a separate part, and the two sides are normally replaced together.
Fits
It is a control arm replacement for the 2013-2020 Ford Fusion, and it is listed across a wide range of Ford and Lincoln models, including the 2019-2020 Ford Police Responder Hybrid and the 2019-2020 Ford SSV Plug-In Hybrid. The front right position takes one arm. Driving something else? Look up your car in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Front right lower
- Quantity per vehicle: 1
- Maximum width: 15.2 in
- Maximum length: 19.15 in
Build and materials
- Control arm material: forged aluminum
- Bushing material: rubber
- Bearing material: sintered metal
- Dust boot material: neoprene
- Ball joint stud type: grooved
- Pre-greased and greaseable
- Condition: New
- Country of origin: China
In the box
One control arm with ball joint, bushings, dust boot, a 90 degree SAE grease fitting, and an application-specific pinch bolt and locking nut.
Installation notes
- The ball joint arrives pre-greased, with the grease fitting already included.
- The pinch bolt and locking nut are matched to the application and supplied with the arm.
- Labor Saver designs, tools and hardware are meant to make installation faster and easier.
Frequently Asked Questions
Is the CMS401184 a Ford Fusion control arm for 2013-2020 model years?
Yes. Mevotech Supreme CMS401184 is a front right lower control arm with ball joint for the 2013-2020 Ford Fusion. For other models, look up your car in the "Vehicles it fits" section.
What does this front right control arm and ball joint assembly include?
Mevotech Supreme CMS401184 includes the ball joint, bushings, dust boot, a 90 degree SAE grease fitting, and the application-specific pinch bolt and locking nut.
What materials are used in the CMS401184 aluminum control arm?
The arm is forged aluminum. The bushings are rubber, the bearing is sintered metal and the dust boot is neoprene.
How do I know if the ball joint on this control arm is worn?
A clunk over bumps, steering that drifts or uneven front tire wear can be signs. Checking ball joint play means raising the vehicle, so a shop is the right place to do it.
Does the CMS401184 control arm need greasing?
Yes. It arrives pre-greased and has a 90 degree SAE grease fitting included, so the ball joint can be greased during later service.
