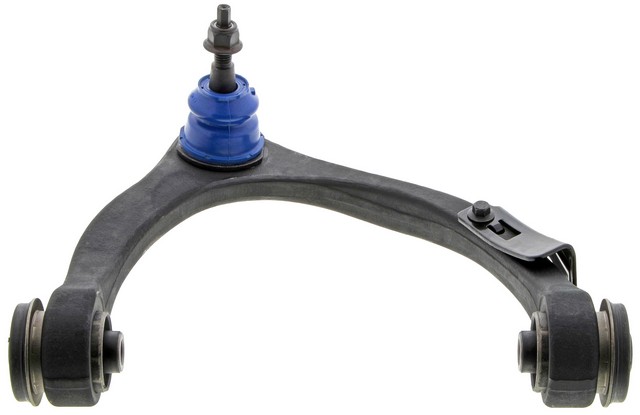

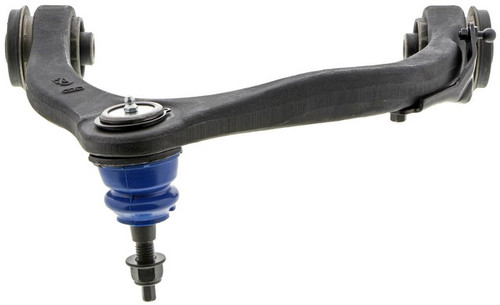

Mevotech Supreme CMS401294 front right upper control arm with ball joint for the 2021-2025 Ford F-150 and other vehicles links the front right wheel to the frame and guides it through suspension travel. This control arm and ball joint assembly replaces the arm and its ball joint in one piece.
- Mevotech Supreme control arm engineered in-house with application-specific upgrades for durability and performance
- Forged steel construction with a structure change for added durability
- Patented sintered bearings for longer-lasting performance
- 180 degree SAE grease fitting included for simple servicing
- Protective surface treatment to prevent rust build-up
Quick facts
- Part: Mevotech Supreme CMS401294 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2021-2025 Ford F-150 and other vehicles
- Position: Front right upper
- Material: Steel
- Condition: New
A clunk over bumps, loose or wandering steering and uneven front tire wear can mean a worn control arm or ball joint. These signs alone do not prove this arm is at fault, since a worn tie rod end can also loosen the steering. Control arms are normally replaced in pairs, so plan on the left upper one too; this listing is one arm, for the front right.
Fits
It is a suspension control arm for the 2021-2025 Ford F-150 and the 2022-2025 Ford F-150 Lightning, and the front right side of each takes one.
Specifications
Fit and size
- Position: front right upper
- Quantity per application: 1
- Maximum width: 13.7 in
- Maximum length: 7.89 in
- Ball joint mounting type: press in
- Ball joint stud type: threaded
Build and materials
- Control arm material: steel
- Bushing material: rubber
- Bearing material: sintered metal
- Dust boot material: neoprene
- Greaseable: yes
- Condition: new
- Country of origin: China
In the box
One control arm with ball joint, rubber bushings, dust boot and mounting hardware.
Installation notes
- Comes pre-greased.
- A part-specific nylon locking nut is provided for the ball joint.
- Labor Saver designs, tools and hardware make installation faster and easier.
Interchange: 19534143 · MCF2539 · ML3Z3084A · ML3Z3084C · NL3Z3084A · GS401294 · 2609016 · 8CB403092
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
19534143, MCF2539, ML3Z3084A, ML3Z3084C, NL3Z3084A, GS401294, CMS401294, 2609016, 8CB403092
Frequently Asked Questions
Is this F-150 control arm a fit for the 2021-2025 Ford F-150?
Yes. Mevotech Supreme CMS401294 is a front right upper control arm for the 2021-2025 Ford F-150, and the front right side takes one.
Does Mevotech Supreme CMS401294 also fit the 2022-2025 Ford F-150 Lightning?
Yes. This front right upper control arm fits the 2022-2025 Ford F-150 Lightning. The left side is a separate part.
Is the Mevotech Supreme suspension control arm greaseable?
Yes. This control arm comes pre-greased and includes a 180 degree SAE grease fitting, so it can be re-greased when serviced.
What are the bushing and boot materials on this front right control arm?
The bushings are rubber and the dust boot is neoprene. The arm itself is steel, with a press-in ball joint.
Does this control arm come with a new locking nut?
Yes. A part-specific nylon locking nut for the ball joint comes with Mevotech Supreme CMS401294, along with the mounting hardware.
