Front Left Upper Control Arm with Ball Joint for 2007-2023 Dodge Charger & More - Mevotech TTX CTXMS251008

$230.99

Vehicles this part fits

    Part number: CTXMS251008
    UPC: 677319469745
    Condition: New
    Weight: 6.25 LBS
    Item Package Quantity: 1
    $230.99
    Adding to cart… The item has been added

    Have questions?

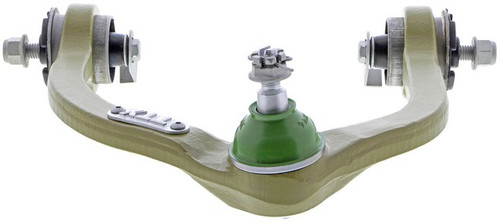

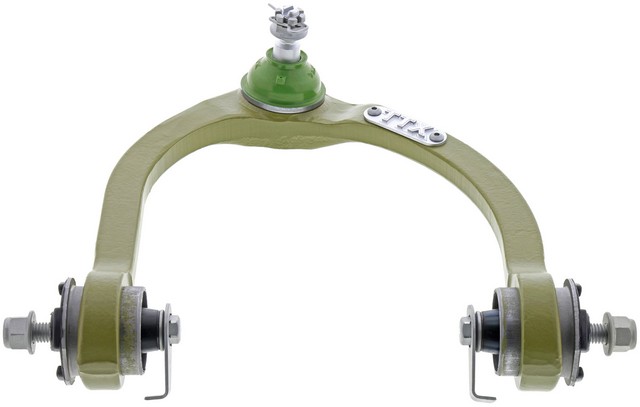

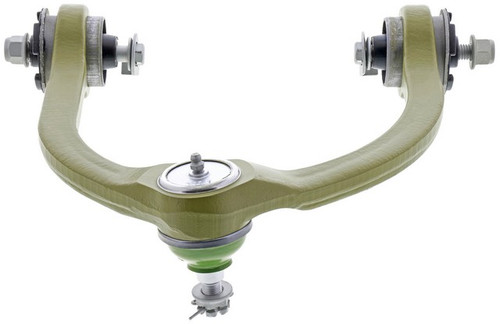

    Mevotech TTX Suspension Control Arm and Ball Joint Assembly P/N:CTXMS251008
    Mevotech TTX Suspension Control Arm and Ball Joint Assembly P/N:CTXMS251008
    $230.99
    $230.99

    Mevotech TTX CTXMS251008 front left upper control arm with ball joint for the 2007-2023 Dodge Charger and other vehicles locates the front left wheel and carries a pre-assembled ball joint. Also called a control arm and ball joint assembly, it covers the arm, bushings and ball joint in one piece.

    • Mevotech TTX line parts are built for high-usage commercial and passenger vehicles, SUVs, fleets and working trucks
    • Forged steel construction with a structure change for increased durability
    • Patented sealing ring permanently locks the neoprene boot onto the ball joint housing
    • Patented sintered metal bearings for toughness
    • Double-bonded rubber bushings for increased stiffness and durability
    • Application-specific ball stud system with a larger sphere

    Quick facts

    • Part: Mevotech TTX CTXMS251008 control arm with ball joint
    • Also called: control arm and ball joint assembly
    • Fits: 2007-2023 Dodge Charger and other vehicles
    • Position: Front left upper
    • Material: Steel
    • Condition: New

    A clunk over bumps, uneven tire wear or loose steering can mean a worn ball joint, bushing or arm. Other suspension parts can give similar signs, so with the engine off, look at the boot for tears and grease seepage and the bushings for cracks before replacing the arm. This listing is one arm for the front left upper position; the right side is its own part, and the pair is normally replaced together.

    Fits

    The 2007-2023 Dodge Charger, the 2005-2023 Chrysler 300 and the 2017-2023 Dodge Challenger take this control arm with ball joint, and so do more models. Owners of other cars can look up their year and model in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Position: front left upper
    • Quantity per application: 1
    • Maximum width: 8.62 in
    • Maximum length: 9.12 in
    • Ball joint stud type: threaded
    • Adjustable: no

    Build and materials

    • Type: control arm with pre-assembled ball joint
    • Control arm material: steel
    • Bushing material: rubber
    • Bearing material: sintered metal
    • Dust boot material: neoprene
    • Condition: new
    • Country of origin: China

    In the box

    One control arm with the ball joint, bushings and dust boot, plus the slotted castle nut, Easy Snap cotter pin and grease fitting.

    Installation notes

    • The ball joint is already assembled to the arm, which shortens installation.
    • The arm is pre-greased, and the 180 degree SAE grease fitting allows later greasing.

    Interchange: 19474050 · 4895669AB

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    19474050, 4895669AB, CTXMS251008

    Frequently Asked Questions

    Is this a front left upper control arm for the 2007-2023 Dodge Charger?

    Yes. Mevotech TTX CTXMS251008 is the front left upper control arm with ball joint for the 2007-2023 Dodge Charger; the front right upper is a separate part.

    Can I use this control arm on a 2005-2023 Chrysler 300?

    Yes. This arm is for the front left upper position of the 2005-2023 Chrysler 300, and the right side takes its own arm.

    Does the ball joint on this arm come with a castle nut and cotter pin?

    Yes. The slotted castle nut and Easy Snap cotter pin come with it, along with the bushings, dust boot and a grease fitting.

    Is the Mevotech TTX control arm greaseable?

    Yes. Mevotech TTX CTXMS251008 is pre-greased and includes a 180 degree SAE grease fitting for later greasing.

    What are the bearing and bushing materials in this front left upper control arm?

    The control arm is steel, with rubber bushings, sintered metal bearings and a neoprene dust boot.
