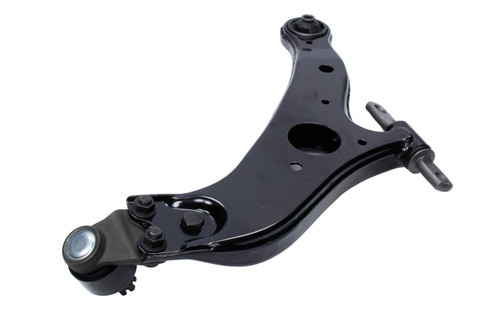

MOOG Chassis Products RK620714 front left lower control arm with ball joint for the 2004-2010 Toyota Sienna links the left front wheel to the frame. Precision tolerances help with installation and steering alignment.
- Patent-pending carbon fiber-reinforced bearing reduces socket friction for longer socket life
- Induction-hardened studs resist breakage and improve fatigue life
- Greaseable socket lets new lubricant flush out contaminants
- Pre-installed dust boot seal keeps wear-causing contaminants out
- Pre-installed bushings with optimized stiffness to inhibit noise
Quick facts
- Part: MOOG Chassis Products RK620714 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2004-2010 Toyota Sienna
- Position: Front left lower
- Material: Stamped steel
- Condition: New
A clunk over bumps, loose steering or uneven tire wear can mean this control arm or its ball joint is worn, though a worn sway bar link or strut mount can be behind a clunk too.
Fits
As a lower control arm for the 2004-2010 Toyota Sienna, it is a direct-fit replacement for the front left. The Sienna takes one on this side; the front right arm is a separate part ordered separately, and the two are normally replaced together.
Specifications
Fit and size
- Position: Front left lower
- Quantity per vehicle: 1 on this side
- Maximum control arm length: 13.98 in
- Ball joint mounting: Bolt in
- Ball joint stud: Threaded
- Adjustable: No
Build and materials
- Control arm material: Stamped steel
- Bushing material: Rubber
- Socket: Pre-greased
- Condition: New
- Country of origin: Taiwan
In the box
One control arm with the ball joint and bushings installed, plus mounting hardware. A grease fitting is not included.
Installation notes
- The socket is pre-greased.
- All necessary hardware is included.
Interchange: 101-7011 · 810-690442B · 622.44853 · 521-813 · 524-153 · 507-1853
45D2499 · 62344853 · TC5317 · CA74313PR · CB75043PR · CA16268 · 5CB86099 · CA74313 · FA3385 · CMS86169 · MS86169 · 2606391 · 4806908021
This part cross-references / interchanges with the following part numbers:
45D2499, 101-7011, 810-690442B, 622.44853, 62344853, TC5317, 521-813, 524-153, CA74313PR, CB75043PR, CA16268, 5CB86099, CA74313, FA3385, CMS86169, MS86169, 2606391, 507-1853, 4806908021
Frequently Asked Questions
Which side of the 2004-2010 Toyota Sienna does this control arm go on?
MOOG Chassis Products RK620714 is the front left lower arm for the 2004-2010 Toyota Sienna. The front right side uses a separate arm.
What comes with the MOOG Chassis Products suspension control arm and ball joint assembly?
It comes with the ball joint, bushings and mounting hardware already included. A grease fitting is not included.
What is the RK620714 control arm made of?
MOOG RK620714 has a stamped steel control arm with rubber bushings. Its ball joint studs are threaded and induction hardened.
How do I know if this ball joint is worn?
A clunk over bumps, loose steering or uneven tire wear can be signs of wear. A shop can check the joint for play safely.
Is the socket on this lower control arm pre-greased?
Yes. The socket arrives pre-greased, and its greaseable design lets new lubricant flush contaminants out later.
