MOOG Chassis RK622033 front left lower control arm with ball joint for the 2008-2020 Dodge Grand Caravan and other vehicles joins the steering knuckle to the body and lets the wheel pivot and move with the suspension.
- Induction-hardened studs and a patent-pending carbon fiber-reinforced bearing reduce socket friction for longer socket life
- Optimized bushings for quiet operation and resistance to wear, salt, road grime and oils
- Ball stud shape ensures fatigue life
- Heat treated to inhibit premature failure
- Coated studs and an e-coated control arm inhibit premature deterioration

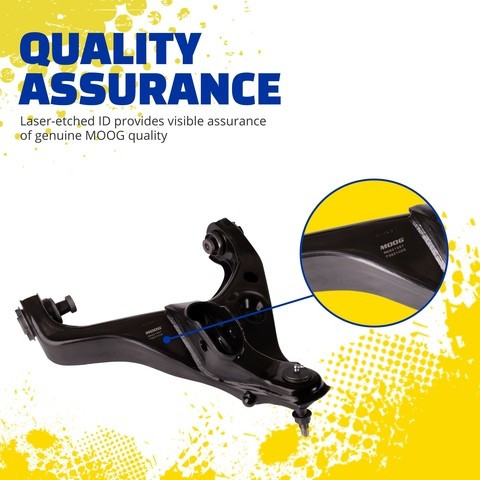

- Laser-etched ID on the part marks genuine MOOG quality
Quick facts

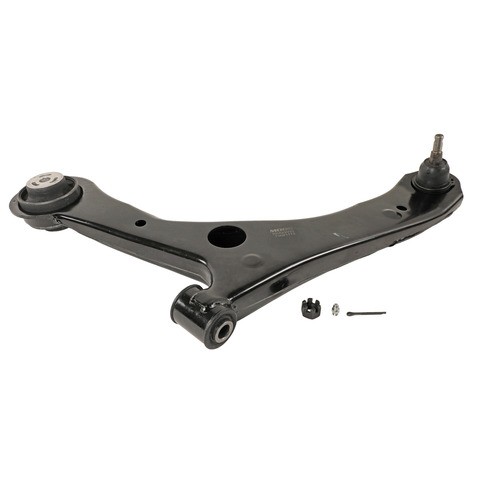

- Part: MOOG Chassis RK622033 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2008-2020 Dodge Grand Caravan and other vehicles
- Position: Front left lower
- Material: Stamped steel control arm, rubber bushings
- Condition: New
A worn control arm or ball joint can show up as a clunk over bumps, uneven tire wear or loose steering. Before you replace the arm, rule out a worn sway bar link, tie rod end or strut mount, since any of them can make a similar noise.
Fits
This is a direct-fit replacement control arm for the 2008-2020 Dodge Grand Caravan, the 2008-2016 Chrysler Town & Country and the 2012-2015 Ram C/V.
Specifications
Fit and size
- Position: Front left lower
- Quantity for this position: 1
- Control arm maximum length: 19.23 in
- Ball joint mounting type: Press in
Build and materials
- Control arm material: Stamped steel
- Bushing material: Rubber
- Ball joint stud type: Threaded
- Pre-greased: Yes
- Condition: New
- Country of origin: China
In the box
One control arm and ball joint assembly for the front left, with the ball joint, bushings, grease fitting and mounting hardware included. Front lower control arms are normally changed as a left-and-right pair, and this listing is one front left arm. That side takes one, and the front right is a separate part.
Installation notes
- The ball joint comes pre-greased.
- Precision tolerances are made for easy installation and steering alignment.
Frequently Asked Questions
Is this C/V control arm the right one for the 2012-2015 Ram C/V?
Yes. MOOG Chassis RK622033 is the front left lower control arm with ball joint for the 2012-2015 Ram C/V. If your vehicle is a different one, find your year and model in the "Vehicles it fits" section.
Does the MOOG Chassis RK622033 control arm include the ball joint, bushings and hardware?
Yes. MOOG Chassis RK622033 comes with the ball joint, rubber bushings, a grease fitting and mounting hardware. This listing is one front left arm; the front right is ordered separately.
Is the ball joint on this front left lower control arm press-in or threaded?
The ball joint mounting type is press in, and the ball stud is threaded. The studs are coated and the joint comes pre-greased.
How can I tell if the ball joint on this front lower control arm is worn?
Signs can include a clunk over bumps, uneven tire wear or loose steering. Checking ball joint play needs the vehicle raised, so have a shop inspect it rather than testing it yourself.
How can I tell this MOOG Chassis control arm is genuine?
Look for the laser-etched ID on the part. It gives visible assurance of genuine MOOG quality.
